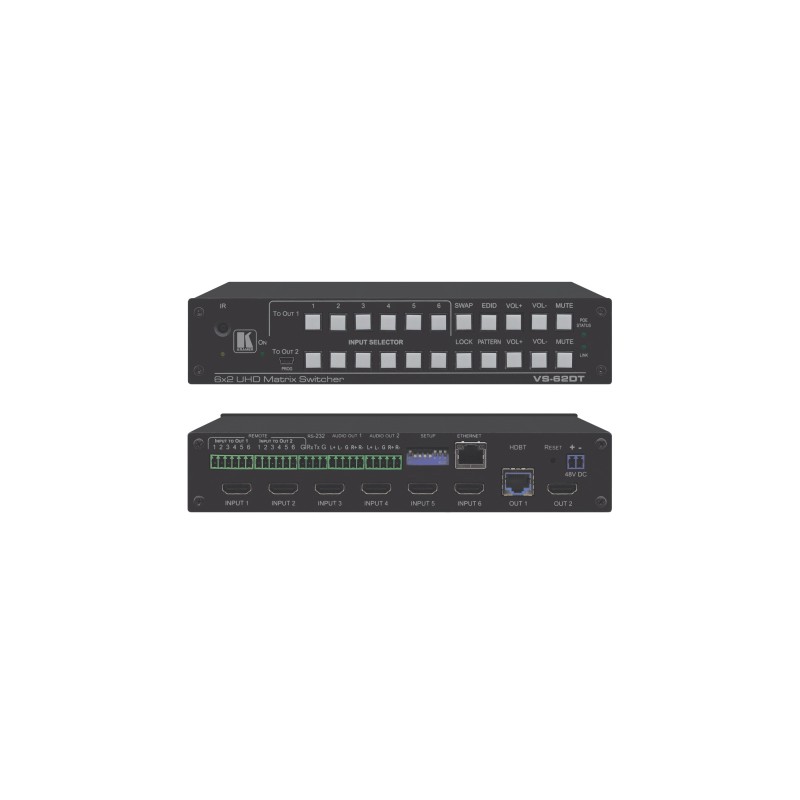

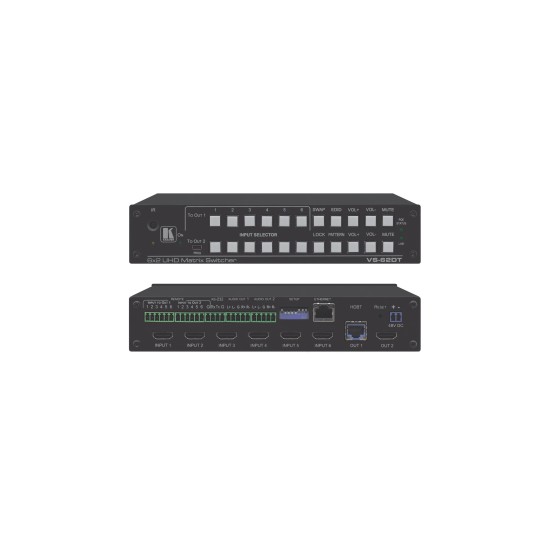

VS-62DT

VS−62DT is a 6x2 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher with HDMI and HDBaseT output transmitters that provide long−reach video and audio transmission. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers. Max. Data Rate — 8.91Gbps (2.97Gbps per graphics channel). Max. Resolution — 4K@60Hz (4:2:0). HDCP 1.4 Support. 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 PCM. Routing — Six HDMI inputs can be routed to an HDMI and HDBaseT output. Power–over–Ethernet — Supply of PoE to compatible receivers. EDID Capture — Copies and stores the EDID from a display device per input. Programmable Step–in Functionality — When used together with compatible step–in devices, such as the SID–X3N and DIP–31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel). True Video Clock Detection. Advanced Auto AV Switching — Last connected and priority switching modes. Non–Volatile EDID Storage. Kramer reKlocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances. Lock Button — Prevents tampering with front panel buttons. Internal Pattern Generator. Kramer Protocol 3000 Support. Static or Dynamic DHCP IP Addressing. Flexible Control Options — Front panel buttons, RS–232, Ethernet, contact closure, embedded Web server and step–in. Mini–USB Port — For upgrading firmware.
