VS-62H

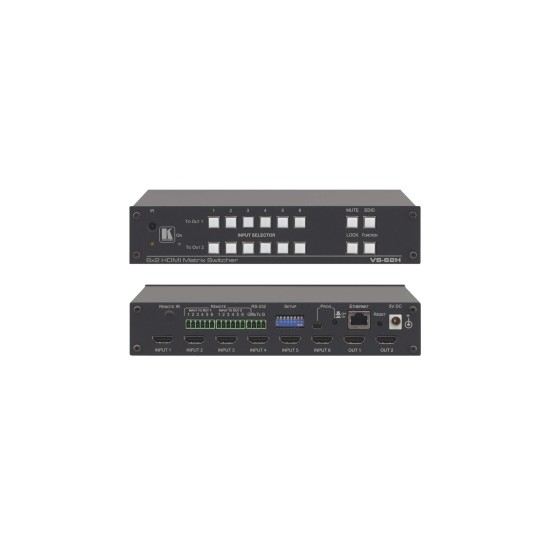

VS−62H is a high−quality, 6x2 matrix switcher for 4K@60Hz (4:2:0) HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously. It supports resolutions up to 4K@60Hz (4:2:0) and WUXGA. Max. Data Rate — 8.91Gbps (2.97Gbps per graphics channel). Max. Resolution — 4K@60Hz (4:2:0) and WUXGA. HDCP 1.4 Compliant. HDMI Support — 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 PCM. EDID Capture — Copies and stores the EDID from a display device. Programmable Step–In Functionality — When used in conjunction with compatible step–in devices, such as the SID–X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel). True Video Clock Detection. Auto Switching Option — For either or both outputs, last–connected or priority switching. Non–Volatile EDID Storage. Kramer reKlocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances. Lock Button — Prevents unwanted tampering with the front panel. Internal Pattern Generator. Kramer Protocol 3000 Support. Embedded Web Pages — Provide remote configuration and operation. Static or Dynamic DHCP IP Addressing. Flexible Control Options — Front panel buttons, IR remote (available upon request) , optional external remote IR receiver, RS–232, Ethernet, contact closure, embedded Web server. USB Port — For upgrading firmware.
