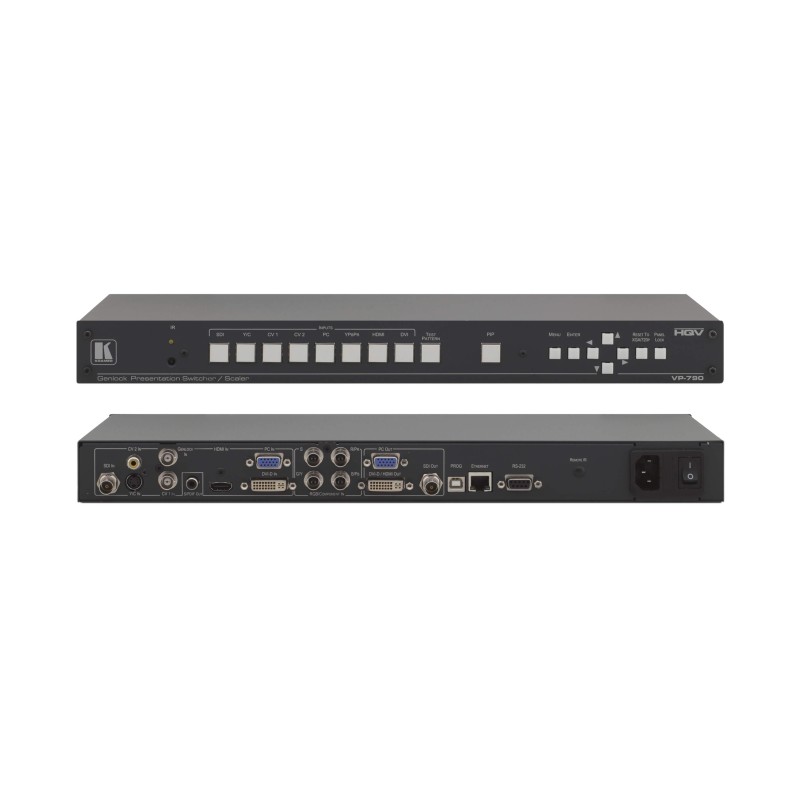

VP-790

The VP−790 is a high−quality presentation scaler/switcher for RGB component, computer graphics, composite, s−Video, HDMI, DVI and 3G HD−SDI signals. The unit takes one of the inputs, scales the video, embeds the audio and outputs the signal to the computer graphics, DVI/HDMI and 3G HD−SDI outputs simultaneously. HQV® Video Processing — HQV (Hollywood Quality Video) processing represents the state–of–the–art in video processing technology, with the highest quality de–interlacing (with 3:2 & 2:2 pull down), noise reduction, and scaling performance for both standard–definition and high–definition signals. Max. Data Rate — 3Gbps (3G HD–SDI). HDTV Compatible. HDCP Compliant — The HDCP (High Definition Content Protection) license agreement allows copy–protected data on the HDMI input to pass only to the HDMI output. Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M). Video Warping — Uses user–generated screen coordinates to match any linear or non–linear surface. Edge Blending — Facilitates building large images using multiple projectors by feathering the overlapped edges. Video Inputs — 1 HDMI, 1 computer graphics video (15–pin HD), 2 composite video (BNC & RCA), 1 s–Video (4–pin), component video (RGBS), 1 DVI and 1 3G HD–SDI. Genlock Input — Ideal for use in broadcast video applications. Scaled Outputs — DVI/HDMI, 3G HD–SDI & computer graphics video (15–pin HD). Scales and Zooms — Up to 400% of the original size. Gaming Mode Option — For minimum latency. Audio Output — S/PDIF de–embedded from HDMI or SDI. Multiple Aspect Ratio Selections — Full, overscan, underscan, letterbox & panscan. Built–in ProcAmp — Color, hue, sharpness, noise, contrast, and brightness. Front Panel Controls — OSD, front panel buttons including test pattern, PIP and Reset to XGA/720p. Non–Volatile Memory — Saves final settings. Front Panel Lockout. Flexible Control Options — Front panel with OSD (on–screen display), IR remote, Ethernet and RS–232. Worldwide Power Supply — 100–240V AC. Standard 19” Rack Mount Size — 1U. Rack “ears” included.
