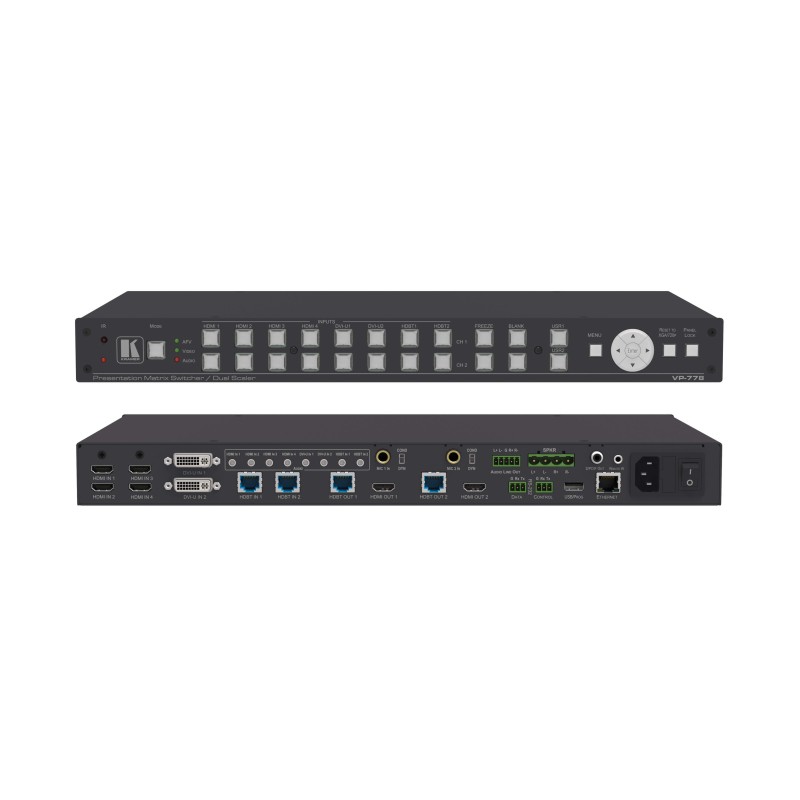

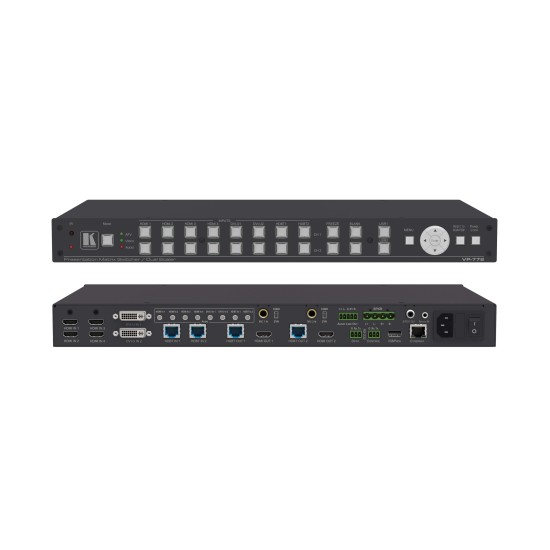

VP-778

VP−778 is a presentation matrix switcher/scaler that can be configured as a single 4K output (4K@30Hz UHD [3840x2160]) or dual HD scaler with full PiP capabilities. It can scale to two independent HDMI outputs, each with a parallel HDBaseT output. VP−778 includes both analog and embedded audio inputs and outputs and audio DSP features. It also features two microphone inputs and digital & analog balanced stereo and amplified speaker outputs. VP−778 can be controlled using built−in web pages, RS−232 and IR. Pix Perfect™ Scaling — State–of–the–art Kramer technology. K–IIT XL™ Picture–in–Picture Image Insertion Technology — Ultra–stable picture–in–picture, picture–and–picture and split–screen. Seamless Video Switching — Swap or follow (transition type) and cut or fade (transition effect). Dual Scalers — “Live” seamless transitions with two independent outputs. 8 Input Buttons per Channel. Main and PiP Window Customization — In overlay mode. Projection Setups — Front, back, ceiling front and ceiling back. Output Resolutions — Up to 4K@30Hz UHD (3840x2160) in single–window mode, HDTV and computer graphics resolutions with selectable refresh rates. Inputs — Choice of HDMI, VGA, YUV, or CV on two DVI–U inputs, 4 HDMI and 2 HDBaseT inputs. Two Programmable User Buttons — For passing serial commands. Serial Comms Matrix — Up to eight sets of configurable unidirectional connections for passing serial data from source to destination. HDBaseT™ Technology — Max. data rate of 6.75Gbps (2.25Gbps per graphic channel). System Range (HDBaseT™) — Up to 130m (430ft) in normal mode; up to 180m (590ft) in ultra–mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables. Cables — For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VP–778. Audio — Balanced stereo audio inputs, two microphone inputs, digital stereo and balanced stereo outputs, input/output audio level adjustment, and audio DSP. Built–in 2x10W Power Amplifier — Speaker outputs on a 4–pin terminal block connector. Microphone — Talkover or mix modes. Auto Switching — Automatically scans inputs based on a predefined priority and selects first live input found or last connected. Audio–Follow–Video (AFV) & Breakaway. Advanced De–interlacing — 3D comb filtering, film mode, diagonal correction, and motion detection. Multiple Aspect Ratio Selections. Built–in Proc–Amp — With enhanced functions such as color correction, gamma, dither, and noise reduction. Power Management Modes — Save energy and money. HDCP Compliance. Luma — and Chroma–Keying. Advanced EDID Management — Native resolution and color depth modeline per input. Built–in Test Patterns — For screen setup and alignment. Output EDID Analysis — For optimal scaling. Input & Output Color Space Control. HDMI Deep Color. On–Screen Display (OSD) — Provides easy setup and adjustment. Non–Volatile Memory — Retains settings. Firmware Upgrade Input — Via USB memory stick. Various Control Options — Front panel buttons, Ethernet web page, RS–485, IR, RS–232 serial commands transmitted by a touch screen system, PC, or other serial controller.
