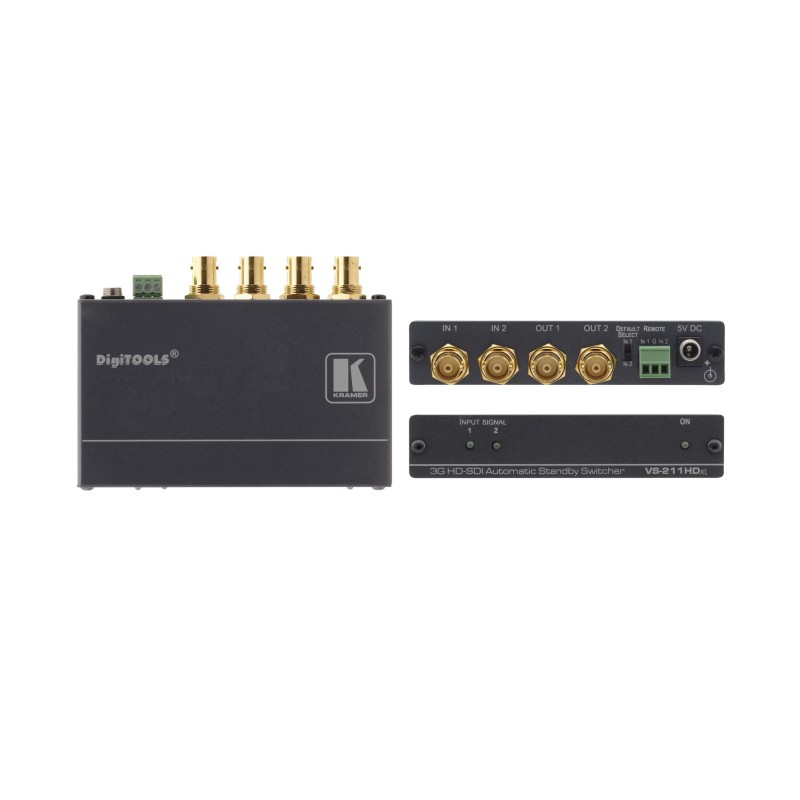

The VS−211HDxl is a high−performance automatic switcher for 3G HD−SDI video signals. When configured as a standby switcher, it switches to the secondary input when the primary input is lost.
Max. Data Rate — 3Gbps.
Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) & 3G HD–SDI (SMPTE 424M).
HDTV Compatible.
Control — Contact closure or automatic switching.
Automatic Standby Switching — Switches from the secondary input to the primary input when a primary signal is detected.
Primary Input — Selectable.
Active Input LED Indicators.
Compact DigiTOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
