DTAxr-IN2-F16

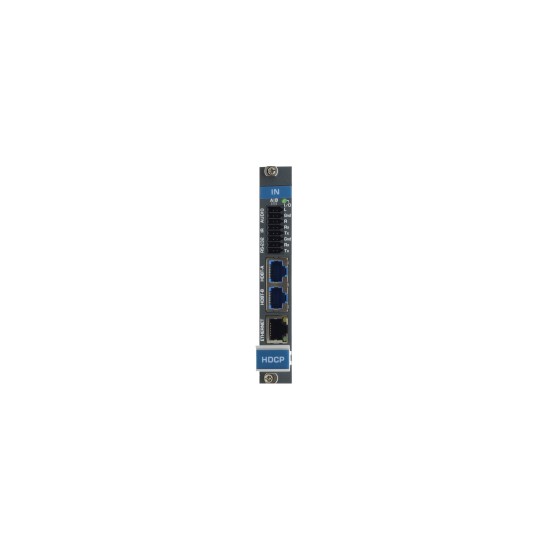

DTAxr−IN2−F16 is a 2−channel 4K60 4:2:0 HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair receiver card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. DTAxr−IN2−F16 inputs two extended reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, Ethernet, and IR from the line to the chassis. Max. Data Rate — 10.2Gbps (3.4Gbps per graphics channel). Max. Resolution — 4K@60Hz (4:2:0). Analog Audio Embedding/De–embedding — On the same jack HDBaseT Technology — HDTV compatible, HDCP compliant. System Range — Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables. Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control. Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control. Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line. 3D Pass–Through.
