SID-X1N

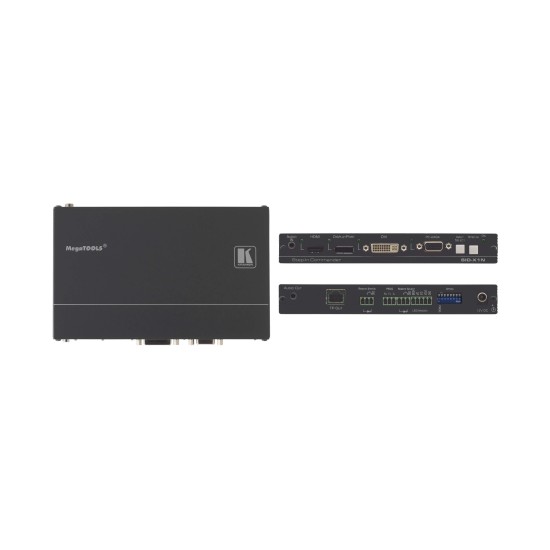

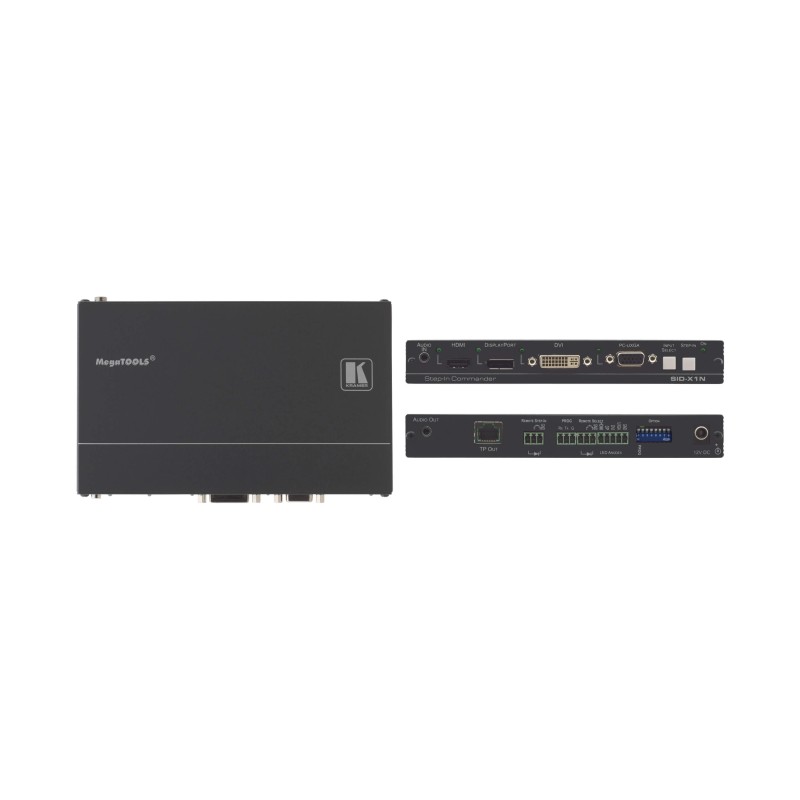

The SID−X1N is a DGKat™ twisted pair transmitter and step−in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a “Step−In” button that allows the local source to be routed as the active source on the main display through the main switcher. Max. Data Rate — 4.95Gbps (1.65Gbps per graphics channel). Compatible Switcher — VP–81SIDN. HDTV Compatible. HDCP Compliant. — Works with sources that support HDCP repeater mode. HDMI Support — x.v.Color™ and 3D. EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems. Data Equalization and Reclocking. Input Signal Detection — Based on video clock presence. Automatic Input Selection — Based on manual selection or last connected input. Automatic Analog Audio Detection and Embedding. Local Balanced Audio De–embedding. Support for Digital Audio Formats. Lockable EDID. DGKat™ Signal Integration — Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. Cable — Requires STP (shielded twisted pair) cable. For optimum range and performance, use shielded Kramer CAT 6 or CAT 7 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non–Kramer CAT 6 and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground. Power Connect™ System — A single connection to the transmitter powers both units when the devices are within 150ft (50m) of each other. Local Step–In Switching — Button & contact closure. Power Supply — Requires independent power supply.
