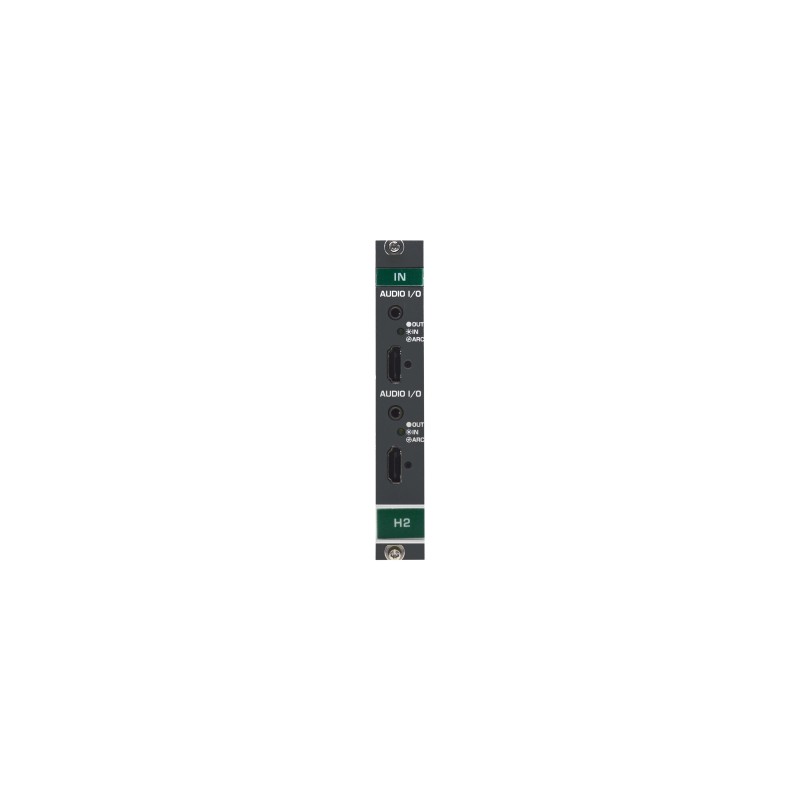

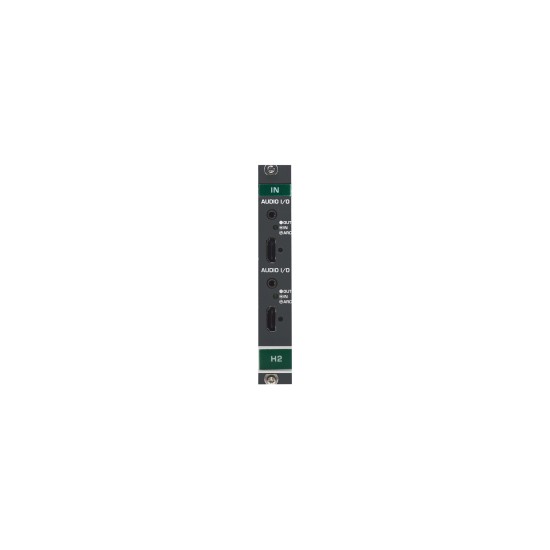

H2A−IN2−F34 is a two−channel 4K@60Hz (4:4:4) HDMI input card with configurable analog audio features for compatible Kramer Modular Multi−Format Digital Matrix Switchers. H2A−IN2−F34 inputs two 4K HDMI signals with selectable ARC (on the upper port), embedded, or de−embedded unbalanced stereo audio.
Max. Data Rate — 18Gbps (6Gbps per graphics channel).
Max. Resolution — 4K@60Hz (4:4:4).
HDMI Support — 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 multi–channel audio.
Analog Audio Embedding/De–embedding — On the same jack and ARC.
HDCP 2.2/1.4 Compliant.
3D Pass–Through.
EDID Capture — Copies and stores the EDID from a display device.
Kramer Equalization and re–Klocking Technology.
