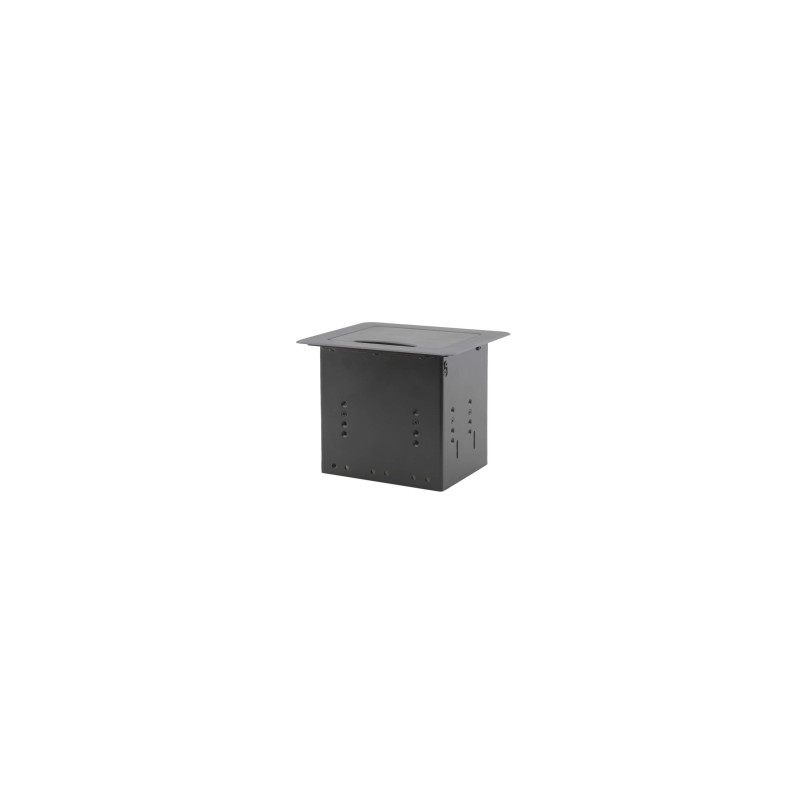

TBUS-3xl

TBUS−3xl is the enclosure of a new modular system with a tilt−up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord. NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately. Inner Frame — 3 different "T3F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass–through or connector inserts, 1 long insert and up to 3 Kramer TOOLS. Power Sockets — 8 different "TS" single power socket options are available to accommodate the power requirements worldwide. Power Cords — 8 different "C–AC" single power cords for each power socket. Optional Accessories — TBUS Brackets, K–Able Box Cable Reels, Step–In Modules and Controllers are available. Cover — Manually opens & closes. Connector Depth — Adjustable. Installation Requirement — Table cutout of 158mm x 123mm (6.23" x 4.85"). Dimensions — Top plate: 17.6cm x 14.0cm (6.9" x 5.5") W, D; Enclosure: 13.6cm x 10.2cm x 13.0cm (5.4" x 4.0" x 5.1") W, D, H. Weight — 1.02kg (2.25lb) approx.; table clamps: 0.257kg (0.566lbs); template: 0.125kg (0.275lbs).
