TBUS-6xl

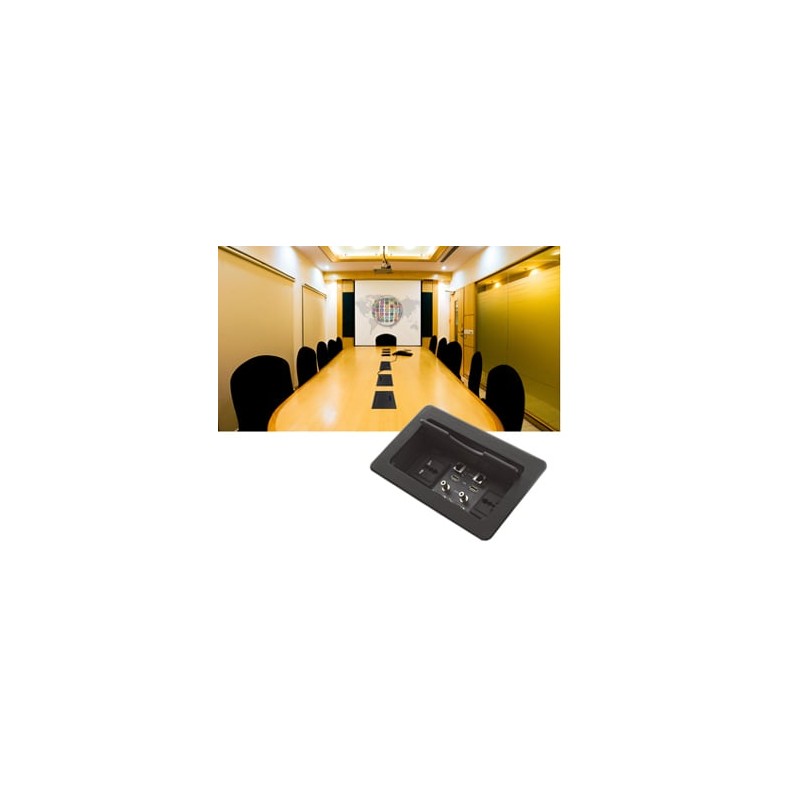

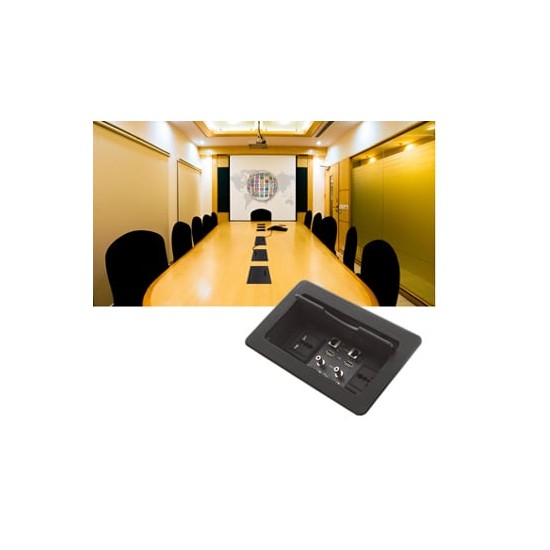

The TBUS−6xl is the enclosure of a new modular system with a tilt−up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord. NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately. Inner Frame — 3 different "T6F" inner frame options are available. Power Sockets — 8 different "TS" single power socket options are available to accommodate the power requirements worldwide. Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket. Optional Accessories — TBUS Brackets, K–Able Box Cable Reels, Step–In Modules and Controllers are available. Retractable Lid — Manually slides into unit. Connector Depth — Adjustable. Installation Requirement — Table cutout of 225mm x 123mm (8.87" x 4.85"). Dimensions — Top plate: 24.3cm x 14.0cm (9.6" x 5.5") W, D; Enclosure: 22.1cm x 10.2cm x 13.0cm (8.7" x 4.0" x 5.1") W, D, H. Weight — 1.35 kg (2.8 lbs) approx.; table clamps: 0.25 kg (0.6 lbs) approx.
