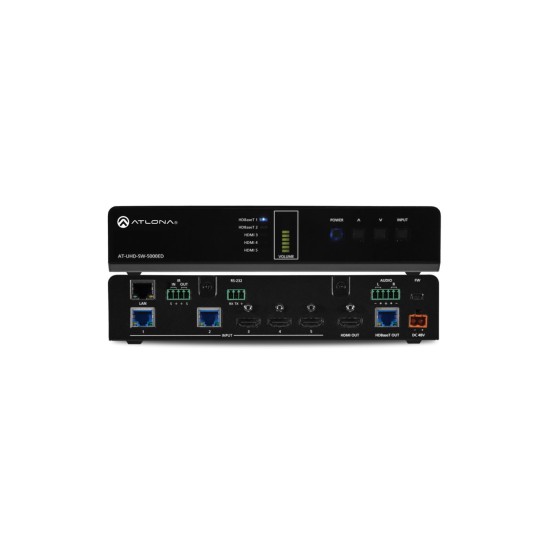

Five-Input HDMI / HDBaseT Switcher with Mirrored HDMI / HDBaseT Outputs

The Atlona AT-UHD-SW-5000ED is a 5×1 switcher with two HDBaseT inputs, three HDMI inputs, mirrored HDMI and HDBaseT outputs, balanced audio outputs, automatic input selection, and automatic display control capability. The HDBaseT inputs match perfectly with the HDVS-200-TX modules to enable VGA and HDMI sources to be easily integrated into a system. The switcher supports 4K/UHD @ 60 Hz, 4:2:0; (10.2 Gbps). It transmits AV signals along with Ethernet, power, and control over a single cable to displays up to 330 feet (100 meters) from the switcher. Control options include automatic input selection, front-panel buttons, and compatibility with IR, RS-232, or TCP/IP-based control systems. Displays are automatically turned on and off using CEC, IP, or RS-232. The SW-5000ED enables two HDVS transmitters to be used in a single system. With Ethernet enabled HDBaseT transmission to the HDVS transmitters and the receiver control, setup and maintenance is simplified. Automatic input selection and display control simplify the system, reducing cost, reducing setup time and resulting in a better end user experience. The SW-5000ED provides control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the SW-5000ED can trigger a display to power on automatically whenever a laptop or other device is connected, whether locally to the switcher or over HDBaseT. At the end of the presentation, when the presenter disconnects the laptop, the SW-5000ED forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The SW-5000ED’s display control capability can also be triggered by an external control system. A power button on the front panel can be used for manual on/off control of either the SW-5000ED or the display. Front panel volume controls are also available to control the display’s internal audio, or another device with volume control, such as a DSP or another switcher. * Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can confirm proper operation with many current Samsung, Panasonic, Sony, and LG TVs. Many manufacturers do not support the CEC “off” command when sent from a source and older TVs use proprietary commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays. The SW-5000ED automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video. The SW-5000ED adds 4K/UHD performance and extended distance HDBaseT transmission to Atlona’s HDMI small switcher family for a unique solution for professional integration applications. Internal HDBaseT and video distribution eliminate the need for additional system components while PoE eliminates the need for a power supply for the receiver. As an alternative, with an HDBaseT-capable display, an HDBaseT receiver isn’t required, reducing system complexity and saving integrators time and money. Advanced features also include a web-based GUI for easy set-up and management of EDID, HDCP, and display control. The switcher offers audio de-embedding of PCM audio over HDMI to two-channel, balanced +4 dBu analog audio outputs. The switcher is a cost-effective product for professional integration featuring a compact, 1U, half-rack width enclosure that is easily installed with included 19” rack-mount brackets. Two units can be mounted side-by-side. Velocity Device Manager is a powerful network software platform ideal for configuring, managing, and monitoring the SW-5000ED and other Atlona IP-controllable devices over a LAN, WAN, or VPN. Velocity Device Manager is available as part of Velocity control systems or as a free virtual machine software download, and greatly streamlines installation and maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser. The AT-UHD-SW-5000ED is part of the Atlona SW Series of compact AV switchers, ideal for a wide range of commercial and residential applications. The SW Series offers performance, reliability, and a host of integration and user convenience features. See below for more information. 2 HDMI 1 DisplayPort 1 USB-C (video and power only) 1 wireless AV Embedding and de-embedding Front panel volume control TCP/IP, RS-232, and contact closure control Control insertion over HDBaseT Automatic input switching Automatic display control De-embedding HDMI Audio Return Channel De-embedding HDMI Audio Return Channel Front panel volume control and indicator De-embedding Front panel volume control and indicator TCP/IP, RS-232, and IR control Control insertion over HDBaseT Automatic input switching Automatic display control 2 HDBaseT (100 m) 3 HDMI De-embedding Front panel volume control and indicator TCP/IP, RS-232, and IR control Control insertion over HDBaseT RS-232 routing to remote devices Automatic input switching Automatic display control The AT-UHD-SW-5000ED features HDBaseT input and output, and is compatible with Atlona UHD-EX and HDVS-200 Series transmitters and receivers. This switcher can conveniently be controlled by the ANC-108D button control panel. Two, Ethernet-enabled HDBaseT Inputs Mirrored, dual outputs on HDMI and HDBaseT Automatic display control Automatic input selection using hot plug detect and video detection technology Ethernet-enabled HDBaseT IR, RS-232 and Ethernet HDBaseT insertion EDID management and HDCP management 4K/UHD capability AV, Ethernet, power and control over HDBaseT Power over Ethernet for remote-powered HDBaseT transmitters* and receivers TCP/IP, RS-232, and IR control Easy, GUI-based configuration using integrated web server Volume controls Volume setting indicator Balanced, line level output Multi-channel audio compliant Rack-mountable, 1U, half rack width enclosure Works with Velocity Device Manager Included accessories Product warranty
