4K/UHD HDMI Over HDBaseT Transmitter with Control and PoE
$380.70
(Estimated Price)
4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
HDCP 2.2 compliant
Supports 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
HDBaseTTM transmitter for HDMI, power, and control up to 230 feet (70 meters)
Local AC powering – PoE (Power over Ethernet) source
Transmits RS-232, IR, and CEC control signals over HDBaseT
Multi-channel audio compliant for all PCM, Dolby, and DTS formats
Prices
All site prices are estimates. The total shown may not reflect the final price.
Shipping
Free shipping on all orders!
Payment
Once a purchase order is placed, we will contact you to finalize the order before payment is made.

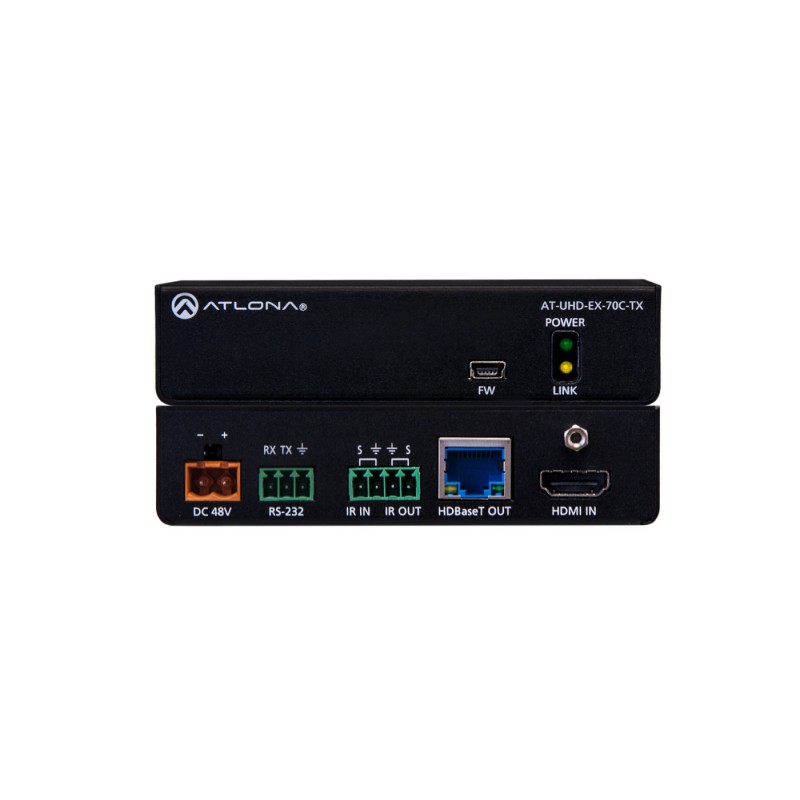

The Atlona AT-UHD-EX-70C-TX is an HDBaseT transmitter for HDMI transmission up to 230 feet (70 meters) over category cable with RS-232 and IR control pass-through. It transmits video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The AT-UHD-EX-70C-TX is HDCP 2.2 compliant and supports EDID communication. This HDBaseT transmitter is externally powered by the included power supply, making it ideal for extending AV and control directly to a projector with an HDBaseT input.
The AT-UHD-EX-70C-TX provides a value-oriented integration solution for simple point-to-point signal extension to a display, or expanding the scope of an AV system design with remote input connectivity. It features a quarter rack width metal enclosure and includes surface mounting brackets for easy under-table, furniture, or on-wall installation.
The AT-UHD-EX-70C-TX is ideal for use in:
The AT-UHD-EX-70C-TX is compatible with the AT-UHD-EX-70C-RX receiver, as well as Atlona switchers and matrix switchers with HDBaseT inputs. See below for a list of compatible products. This transmitter is also ideal for extending AV and control to displays with HDBaseT inputs.
The AT-UHD-EX-70C-TX is part of the Atlona UHD-EX Series of HDBaseT extenders. See below for a complete listing of transmitters, receivers, and extender kits.
Also available from Atlona are the HDR-EX Series for extending 4K HDR and control signals over HDBaseT.
ATL-AT-UHD-EX-70C-TX
4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
HDCP 2.2 compliant
Supports 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
HDBaseTTM transmitter for HDMI, power, and control up to 230 feet (70 meters)
Local AC powering – PoE (Power over Ethernet) source
Transmits RS-232, IR, and CEC control signals over HDBaseT
Multi-channel audio compliant for all PCM, Dolby, and DTS formats
