4K/UHD Remote Powered HDMI Over 100 M HDBaseT Transmitter with Ethernet, Control, and PoE

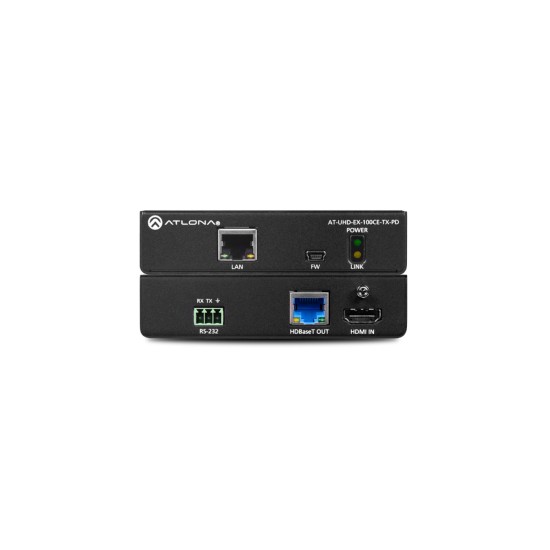

The Atlona AT-UHD-EX-100CE-TX-PD is an HDBaseT transmitter for HDMI transmission up to 330 feet (100 meters) over category cable with Ethernet and RS-232 control pass-through,. It transmits video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The AT-UHD-EX-100CE-TX-PD is HDCP 2.2 compliant and supports EDID communication. The transmitter features a quarter rack width metal enclosure for easy rack mounting with rear panel I/O ports for uncluttered wire management. This device is externally powered via Power over Ethernet, and is ideal for use with Atlona switchers with PoE-equipped HDBaseT inputs, including the AT-OME-PS62, AT-UHD-CLSO-824, and AT-UHD-SW-5000ED. The AT-UHD-EX-100CE-TX-PD transmitter simplifies system design when powered by an Atlona switcher with HDBaseT inputs, reducing cost and complexity by eliminating the need for a power supply. It can also be paired with the AT-OME-RX11 receiver that delivers PoE. Installer-friendly features include a rack-mountable form factor that allows four transmitters to share a single 1U rack tray, and a front mounted USB port for easy firmware updates. This transmitter is ideal for use in applications where: The AT-UHD-EX-100CE-TX-PD is ideal for use with the AT-OME-RX11 receiver with audio de-embedding, as well as the AT-OME-RX21 and AT-OME-RX31 scaling receivers with local HDMI input and audio de-embedding, and Atlona switchers and matrix switchers with HDBaseT inputs. See below for a list of compatible products. The AT-UHD-EX-100CE-TX-PD is part of the Atlona UHD-EX Series of HDBaseT extenders. See below for a complete listing of transmitters, receivers, and extender kits. 4K/60 4:2:0 4K/24 HDR10 130 feet (40 meters) HDMI RS-232 IR 4K/60 4:2:0 4K/24 HDR10 130 feet (40 meters) HDMI RS-232 IR 4K/60 4:4:4 4K/60 HDR10 Dolby Vision @ 30 Hz 130 feet (40 meters) HDMI RS-232 IR 4K/60 4:4:4 4K/60 HDR10 Dolby Vision @ 30 Hz 130 feet (40 meters) 4K/60 4:2:0 4K/24 HDR10 HDMI RS-232 IR Ethernet 4K/60 4:2:0 4K/24 HDR10 HDMI RS-232 Ethernet 4K/60 4:2:0 4K/24 HDR10 HDMI RS-232 IR Ethernet 4K/60 4:4:4 4K/60 HDR10 Dolby Vision @ 30 Hz HDMI RS-232 IR Ethernet * To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended. Also available from Atlona are the HDR-EX Series for extending 4K HDR and control signals over HDBaseT. 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling HDCP 2.2 compliant Supports 4K HDR10 @ 24 Hz Remotely powered via PoE (Power over Ethernet) AV, Ethernet, power, and control over HDBaseT Extended distance HDMI extension Extends RS-232, CEC, and Ethernet control signals* Rear panel I/O connectors Multi-channel audio compliant Field-updatable firmware Front panel Power and Link status LEDs Low-profile, 1 inch (25 mm) high quarter rack-width enclosure Included accessories Product warranty
