4K/UHD HDMI Over 100 M HDBaseT Transmitter with Ethernet, Control, and PoE
search
  • 4K/UHD HDMI Over 100 M HDBaseT Transmitter with Ethernet, Control, and PoE

4K/UHD HDMI Over 100 M HDBaseT Transmitter with Ethernet, Control, and PoE

$477.00

(Estimated Price)

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling HDCP 2.2 compliant Supports 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color) HDBaseTTM transmitter for HDMI, Ethernet, power, and control up to 330 feet (100 meters) Local AC powering – PoE (Power over Ethernet) source Transmits RS-232, IR, CEC, and Ethernet control signals over HDBaseT Multi-channel audio compliant for all PCM, Dolby, and DTS formats
Quantity
  Prices

All site prices are estimates. The total shown may not reflect the final price.

  Shipping

Free shipping on all orders!

  Payment

Once a purchase order is placed, we will contact you to finalize the order before payment is made.

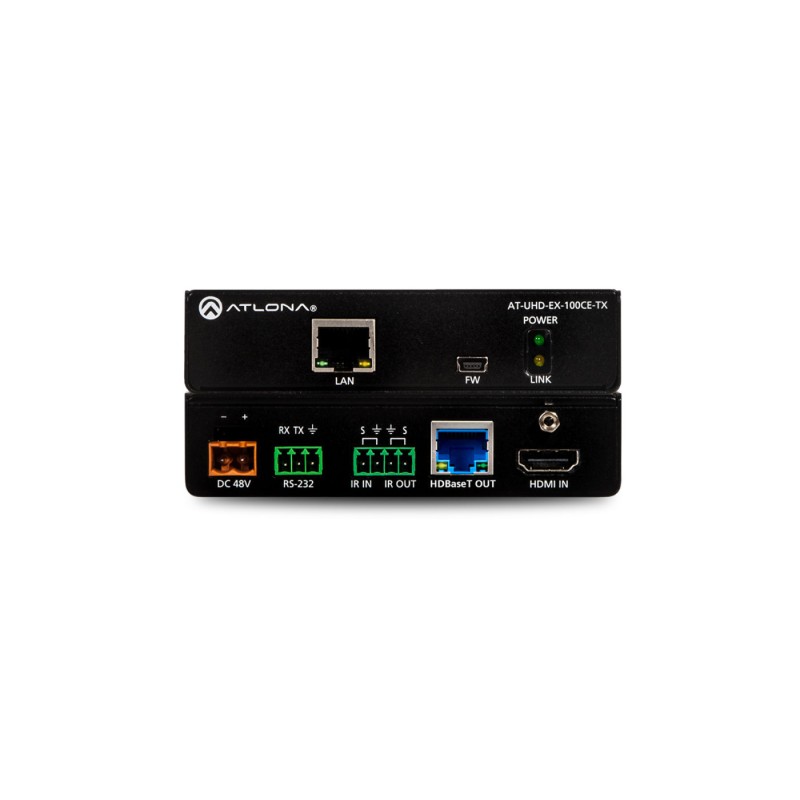

The Atlona AT-UHD-EX-100CE-TX is an HDBaseT transmitter for HDMI transmission up to 330 feet (100 meters) over category cable with Ethernet, RS-232, and IR control pass-through. Designed to work with HDBaseT inputs on switchers and projectors, this extender transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio. Additionally, the transmitter extends Ethernet, RS-232, and 12 volt-based IR control commands. The AT-UHD-EX-100CE-TX is HDCP 2.2 compliant and supports EDID communication. The transmitter features a quarter rack width metal enclosure for easy rack mounting with rear panel I/O ports for uncluttered wire management. This PSE (Power Sourcing Equipment) device is externally powered, includes a desktop power supply and provides Power over Ethernet for compatible receiving devices. The AT-UHD-EX-100CE-TX is certified by the HDBaseT Alliance. This HDBaseT Class A transmitter is designed to support the growing number of displays and video projectors in the commercial market with HDBaseT inputs. Built-in Ethernet and bi-directional control signal extension eliminates the need for additional cabling from switcher to the display or remote input device. Installer-friendly features include: a rack-mountable form factor that allows four transmitters to share a single, 1U rack tray; power chaining to allow multiple sets to be powered from one power supply; and a front mounted USB port for easy firmware updates. The AT-UHD-EX-100CE-TX is compatible with the AT-UHD-EX-100CE-RX receiver, as well as Atlona switchers and matrix switchers with HDBaseT inputs. See below for a list of compatible products. This transmitter is also ideal for extending AV and control to displays with HDBaseT inputs. The AT-UHD-EX-100CE-TX is part of the Atlona UHD-EX Series of HDBaseT extenders. See below for a complete listing of transmitters, receivers, and extender kits. Also available from Atlona are the HDR-EX Series for extending 4K HDR and control signals over HDBaseT.
ATL-AT-UHD-EX-100CE-TX
