Three-Input HDBaseT Transmitter for VGA and HDMI Video

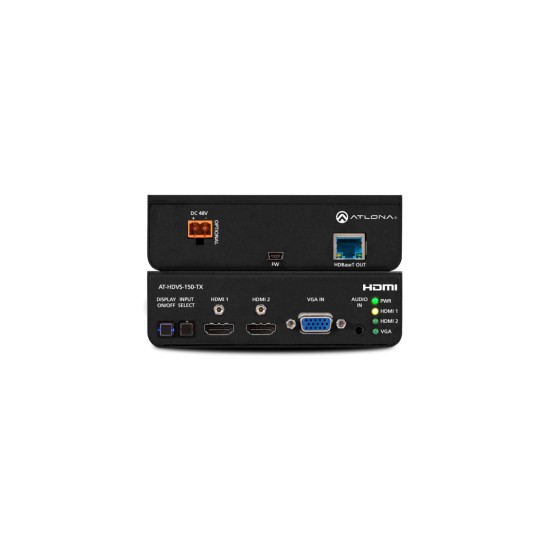

The Atlona AT-HDVS-150-TX is a 3×1 switcher and HDBaseT transmitter with two HDMI inputs and a VGA input with audio. Video signals up to 1080p, plus embedded audio can be transmitted up to 230 feet (70 meters). The HDVS-150-TX is designed for use with the AT-HDVS-150-RX receiver and HD scaler, and can serve as the central component of a compact, automated AV system with the convenience of automatic input selection and display control. The switcher is remotely powered by the HDVS-150-RX through Power over Ethernet (PoE). The HDVS-150-TX combines the benefits of auto-switching and integrated display control, and the advantages of HDBaseT signal transmission. It incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces. Surface mounting brackets are provided with the HDVS-150-TX for easy under-table, furniture, or on-wall installation. When used in conjunction with the HDVS-150-RX receiver, the HDVS-150-TX can provide control to a display through RS-232, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-150-TX can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-150-TX forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. A power button on the front panel can be used for manual on/off control of the display. Automatic display control is available only when connected to the HDVS-150-RX receiver. The HDVS-150-TX automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal. Also available from Atlona is the AT-OME-ST31A, for applications requiring 4K/UHD compatibility. The OME-ST31A offers three-input switching for HDMI and USB-C sources, mirrored HDBaseT and HDMI outputs for driving two displays, selectable 4K downscaling to 1080p for the HDMI output, and audio de-embedding. The AT-HDVS-150-TX is part of the Atlona HDVS Series of HDBaseT extenders with AV switching and scaling, plus automatic display control and automatic input selection. See below for a complete listing of transmitters and receivers. 2 HDMI 1 VGA AV Control (internal) 2 HDMI 1 VGA AV Control (internal) AV switcher + transmitter US two-gang wall plate 1 HDMI 1 VGA AV Control (internal) AV switcher + transmitter UK two-gang wall plate 1 HDMI 1 VGA AV Control (internal) AV Control (internal) Transmitter + receiver kit AT-HDVS-150-TX AT-HDVS-150-RX 2 HDMI 1 VGA AV Control (internal) Transmitter + receiver kit AT-HDVS-150-TX-WP AT-HDVS-150-RX 1 HDMI 1 VGA AV Control (internal) 2 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet 2 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet AV switcher + transmitter US two-gang wall plate 1 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet AV switcher + transmitter US two-gang wall plate (black) 1 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet AV switcher + transmitter US one-gang wall plate 2 HDMI 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet (via compatible RX) AV switcher / transmitter + receiver kit US one-gang wall plate 2 HDMI AV RS-232 Ethernet (via RX) * To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended. ** Not a member of the HDVS Series, but includes many of the same convenient features without HDBaseT extension. The AT-HDVS-150-TX is compatible with the AT-HDVS-150-RX receiver and HD scaler. 3×1 HDBaseT switcher Designed for point-to-point extension to the AT-HDVS-150-RX HD scaling receiver Long distance HDMI extension Remotely powered via PoE (Power over Ethernet) Automatic input selection using hot plug detection Automatic display control (when connected to the HDVS-150-RX) Front panel input selection and on/off controls Field-updatable firmware Front panel power and input selection status LEDs Included accessories Product warranty
