HDBaseT Receiver and Scaler

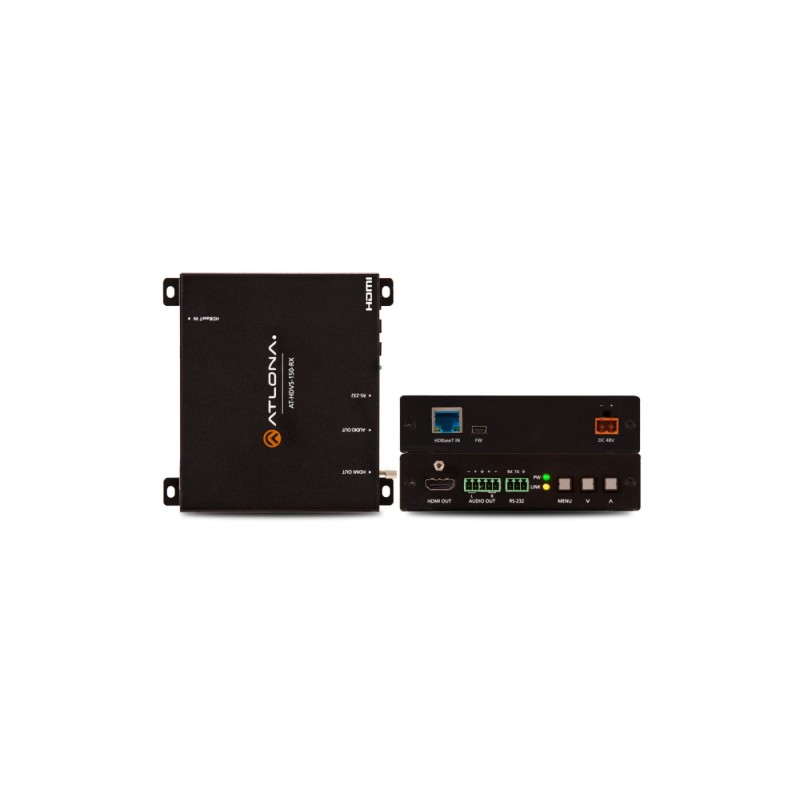

The Atlona AT-HDVS-150-RX is an HDBaseT receiver and HD scaler for video signals up to 1080p, plus embedded audio over distances up to 230 feet (70 meters). The HDVS-150-RX is designed for use with the HDVS-150-TX switching transmitters, and together serve as a compact, automated AV system with the convenience of automatic input selection, display control, and HD scaling. The HDVS-150-RX remotely powers the HDVS-150-TX through Power over Ethernet (PoE). The HDVS-150-RX offers advanced scaling capabilities including image adjustment capability, and a feature for automatically matching incoming signals to the display’s native resolution. Integrated scaling and video processing help optimize image quality and switching performance. This receiver also features audio de-embedding and third-party RS-232 control of the scaler, switcher, and display. The HDVS-150-RX combines the benefits of HD scaling and integrated display control, and the advantages of HDBaseT signal extension. It incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces. The HDVS-150-RX can be surface-mounted for easy installation behind a display or above a projector. When used in conjunction with an HDVS-150-TX transmitter, the HDVS-150-RX can provide control to a display through RS-232, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-150-RX can trigger a display to power on automatically whenever a laptop or other device is connected to the HDVS-150-TX. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-150-RX forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-150-RX display control capability can also be triggered by an external control system. Automatic display control is available only when connected to an HDVS-150-TX transmitter. The HDVS-150-RX is ideal for use in complete system applications with HDVS-150-TX transmitters to provide a two or three-input AV system supporting HDMI and VGA signals, auto-switching, display control, and scaling plus 230 foot (70 meter) extension to displays. (See this featured application as an example, and read about the HDVS-150-TX and HDVS-150-RX in these corporate and local government case studies.) The AT-HDVS-150-RX is part of the Atlona HDVS Series of HDBaseT extenders with AV switching and scaling, plus automatic display control and automatic input selection. See below for a complete listing of transmitters and receivers. 2 HDMI 1 VGA AV Control (internal) 2 HDMI 1 VGA AV Control (internal) AV switcher + transmitter US two-gang wall plate 1 HDMI 1 VGA AV Control (internal) AV switcher + transmitter UK two-gang wall plate 1 HDMI 1 VGA AV Control (internal) AV Control (internal) Transmitter + receiver kit AT-HDVS-150-TX AT-HDVS-150-RX 2 HDMI 1 VGA AV Control (internal) Transmitter + receiver kit AT-HDVS-150-TX-WP AT-HDVS-150-RX 1 HDMI 1 VGA AV Control (internal) 2 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet 2 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet AV switcher + transmitter US two-gang wall plate 1 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet AV switcher + transmitter US two-gang wall plate (black) 1 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet AV switcher + transmitter US one-gang wall plate 2 HDMI 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet (via compatible RX) AV switcher / transmitter + receiver kit US one-gang wall plate 2 HDMI AV RS-232 Ethernet (via RX) * To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended. ** Not a member of the HDVS Series, but includes many of the same convenient features without HDBaseT extension. The AT-HDVS-150-RX is compatible with the AT-HDVS-150-TX switching transmitters, available in standard and wall plate models. Audio de-embedding Long distance HDMI extension HD video scaler with HDMI output and input resolution control EDID management HDCP management RS-232 scaler and switcher control RS-232 display control Power over Ethernet for AT-HDVS-150-TX Field-updatable firmware Included accessories Product Warranty
