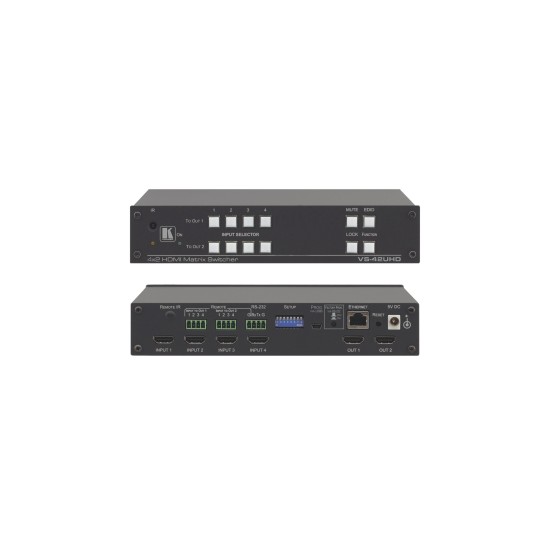

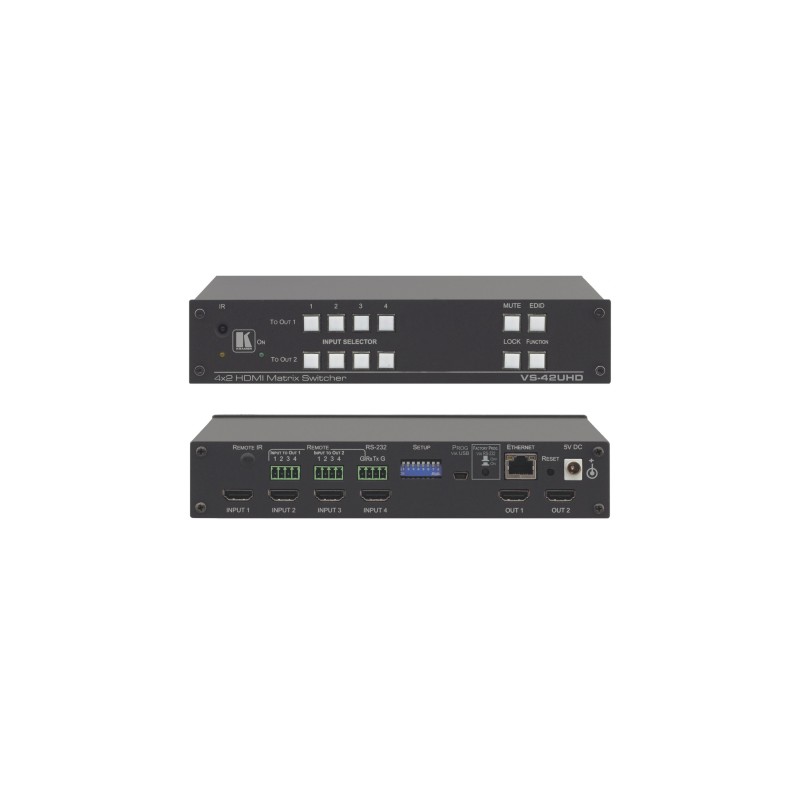

VS-42UHD

VS−42UHD is a high−quality, 4x2 matrix switcher for 4K@60Hz (4:2:0) HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously. Max. Data Rate — 8.91Gbps (2.97Gbps per graphics channel). Max. Resolution — 4K@60Hz (4:2:0) and WUXGA. HDCP 1.4 Compliant True Video Clock Detection. Automatic Switching Modes — Last connected and priority switching. HDMI Support — 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 PCM. EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems. Programmable Step–in Functionality — When used with compatible step–in devices, such as the SID–X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel). Non–Volatile EDID Storage. Kramer reKlocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances. Static or Dynamic DHCP IP Addressing. Embedded Web Pages — Provide remote configuration and operation. Lock Button — Prevents tampering with the front panel buttons. Kramer Protocol 3000. Versatile Control Options — RS–232, Ethernet, infrared remote control.
