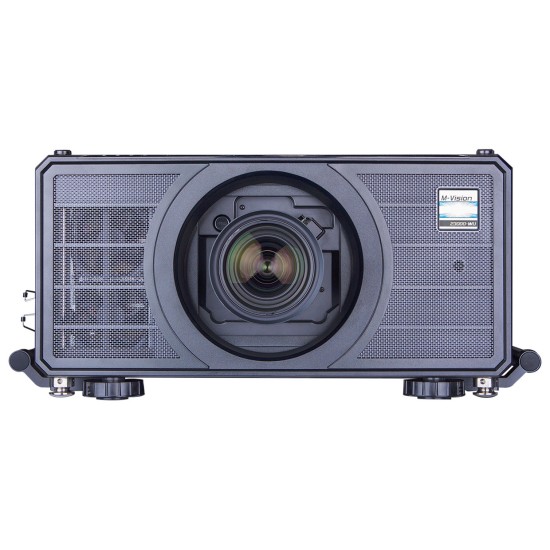

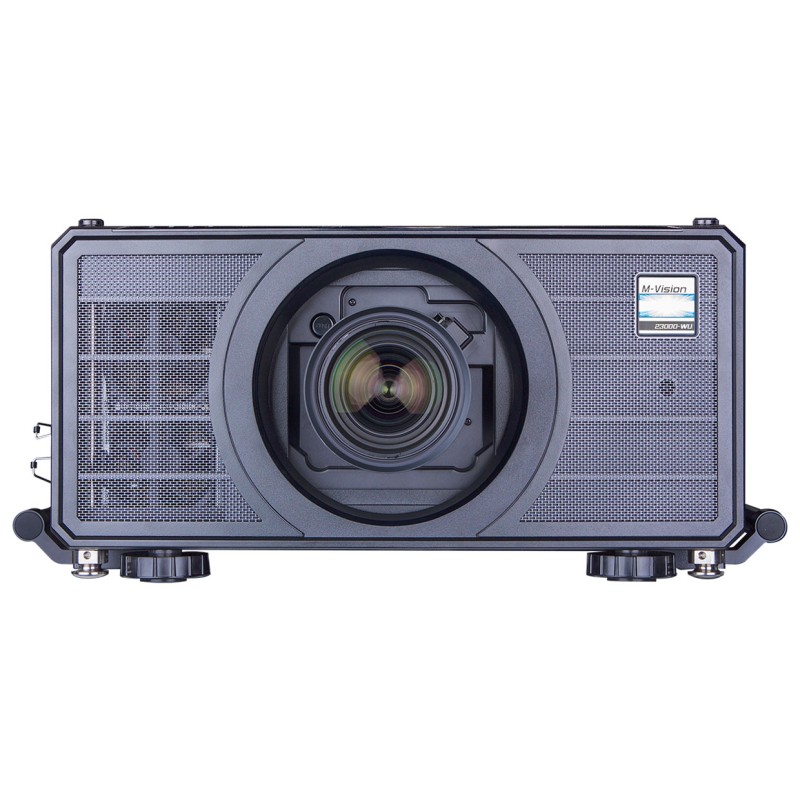

The Digital Projection M-Vision 23000 WU boasts an unprecedented 23,000 lumens output and 10,000:1 contrast ratio, to bring budget-sensitive applications a large-screen imaging solution and near 3-Chip performance at a 1-Chip price point.
The new lamp-free, laser-phosphor projector is charged with ColorBoost + Red Laser technology to provide the most realistic and saturated colours at previously unreachable luminance levels. Venues needing powerful, yet budget-conscious, large-format imagery without sacrificing colour accuracy, as well as those contending with ambient light, will directly benefit from the M-Vision 23000?s market leading light output, contrast ratio and colourimetry. Its DisplayPort accepts frame rates up to 60 Hz and HDMI 1.4b for Side by Side, Frame Packing & Top Bottom 3D formats. Motorised shift, zoom and focus across the whole lens range offer extra flexibility and ease of setup.
The optical system, from the laser light source up to the lens is completely sealed and can be considered IP60 rated. This ensures that light output and colour performance will not be degraded due to the ingress of dust. Additionally, this projector is completely filterless as the system is liquid cooled and uses a radiator heat exchanger, minimising maintenance as no replacement or cleaning of filters is necessary and allows unrestricted airflow.
The 0.96? DarkChip DMD, teamed with blue and red lasers and a four-segment colour wheel produce unrivalled image quality and brightness in the single chip projector market.
WUXGA, 8500 Lumens, Laser Light Source,Variable depending up lens Throw Ratio, 50.7 lbs 1 x HDMI, 1 x DVI-D, 1 x VGA In, 1 x HDBaseT, 1 x 3G-SDI, 1x RJ45 (LAN), 3 Year parts and labor limited warranty on the projector with first year express advance replacement, 5-year or 12,000 hour light source warranty (whichever comes first)
WUXGA, 19,000 Lumens, Laser Light Source,Variable depending up lens Throw Ratio, 110.3 lbs 2 x HDMI-in (2.0b HDCP2.2), 1 x DisplayPort (1.2a), 1 x DVI-D, 1 x VGA-in, 1 x HDBaseT, 2 x 3D SYNC (in+out), 2 x 3G-SDI (in+out), 1 x HDMI-out, 1 x USB Type A (for Wi-Fi adapter),1 x RJ45, 2 x RS232 (in+out), 1 x 12V Trigger, 2 x Wired Remote (in+out),3 Year parts and labor limited warranty on the projector with first year express advance replacement, 5-year or 12,000 hour light source warranty (whichever comes first)
1080p, 1200 Lumen RGB triple laser light source, 1.21:1 Throw Ratio, 2.2lbs, 1x HDMI 2.1, 1x USB-1 Power 1.5A, 1x USB-A power 05.A, USB-C Output, 1x Audio 3.5mm, 1x RS232 (via Mini USB Connector), 1 Year limited parts and labor warranty on the projector, 1-year or 20,000 hour light source warranty (whichever comes first)
WUXGA, 11,500 Lumens, Laser light source with DuraCore technology, Variable throw ratio (0.36 - 5.50:1) dependant on lens (7x lens options), up to 500" image, OMS, Built-in blending and warping, Full geometric correction, Powered lens shift/zoom/focus with lens shift memory, quick-switching redundency, 360-degree install, 35dB noise level, HDMI-in (2.0b) and HDMI-out, DVI-D, HDBaseT, 3G-SDI, 3D Sync in/out, USB Power, LAN control, RS232, 12V trigger, 4K and HDR10 support
WXGA, 4000 Lumens, Lamp Light Source,1.55~1.73:1 Throw Ratio, 6.7lbs 1 x HDMI, 1 x VGA, 1 x composite, 1 x audio-in, 1 x VGA out, 1 x audio out, 1 Year limited parts and labor warranty on the projector, 90 days lamp warranty
