WP-EN6

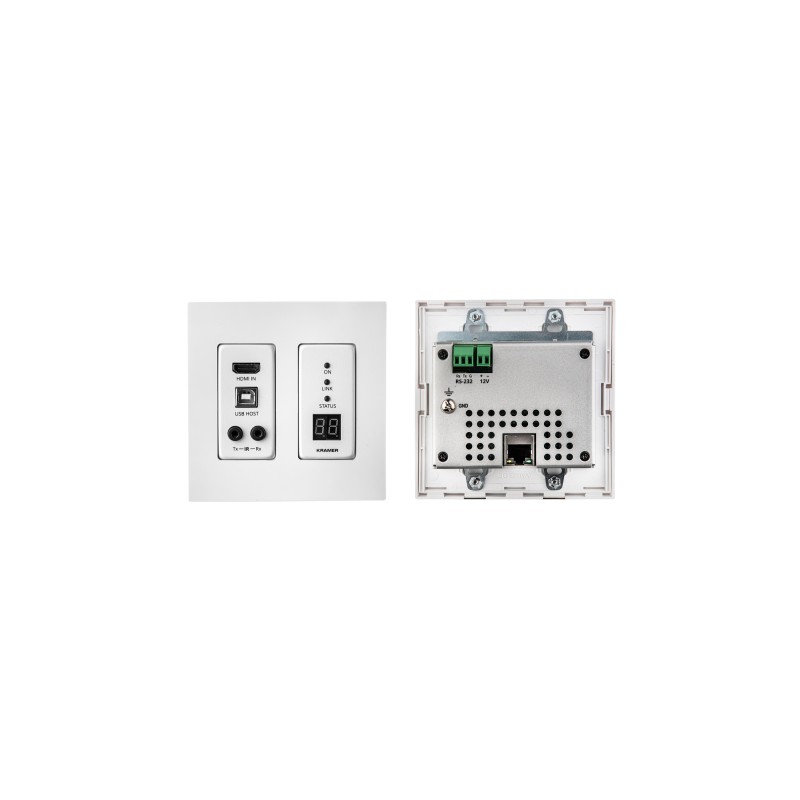

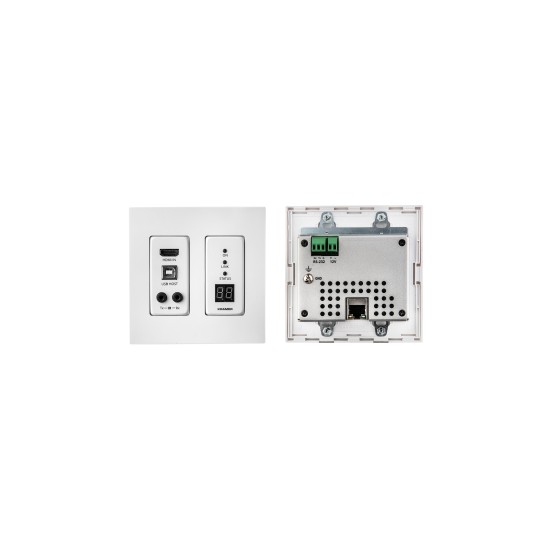

WP−EN6 is a 2−gang (US) wall−plate video encoder that provides streaming of 4K@60Hz (4:2:0), HDCP 2.2, HDMI video, IR, RS−232, and USB signals over an IP network in unicast (one−to−one) or multicast (many−to−many) configurations. High Resolution Video Streaming — 4K@60Hz (4:2:0) HDMI with HDCP 2.2 compliance. Maximum Compatibility — Fully standard and compliant JPEG 2000 codec, enables compatibility with other software and hardware encoders. Open encoding enables software decoding through VLC™ player software. Reliable PoE (Power over Ethernet) Powering — Auto–senses the extension line PoE status, and accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter (not included). Standard Ethernet Network Operation — 10M/100M/1000M. Selectable Streaming Mode — Unicast or multicast through RTSP (Real Time Streaming Protocol). Flexible Video Wall Setups — 1 to 256 screens. Virtualization — IR, USB, RS–232 over IP. Network — Switch 1G multicast IGMP snooping managed layer 2. Easy Installation — Fits into standard US 2–gang in–wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall–plate installation is fast and cost–effective via a single twisted pair cable, providing both video signal and power (PoE) connections.
