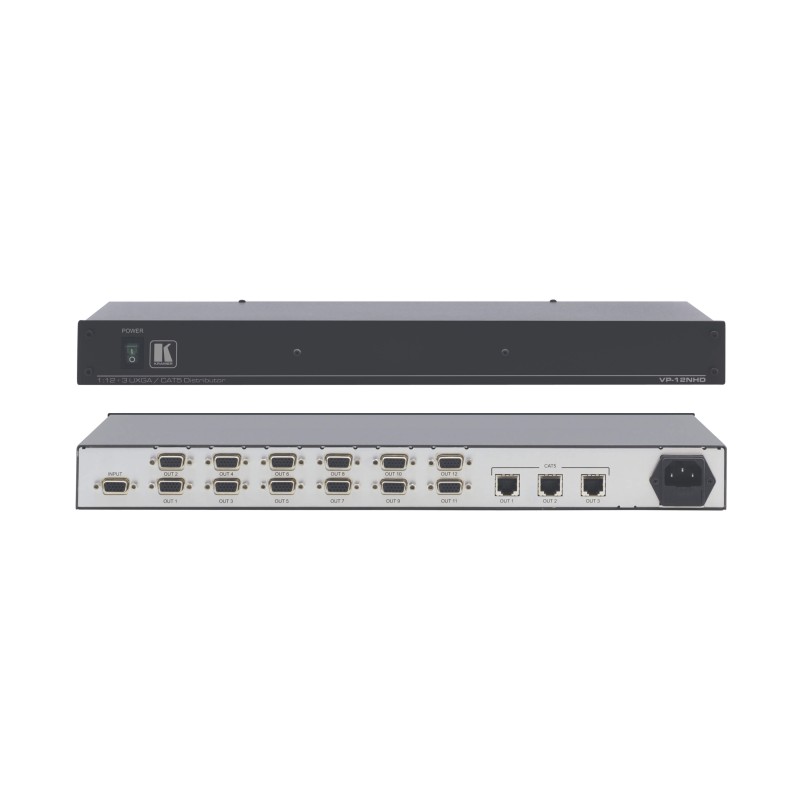

VP-12NHD

The VP-12NHD is a high-performance distribution amplifier for computer graphics video signals. It takes one input, provides correct buffering and isolation, and distributes the signal to twelve computer graphics outputs on 15-pin HD connectors and three twisted pair outputs. High Bandwidth (15–pin HD) — 330MHz (–3dB). Max. Resolution (Twisted Pair) — WUXGA & 1080p. HDTV Compatible. Sync Polarity Settings — H & V switches for improved display compatibility with the CAT 5 outputs. Power Connect™ System — A single connection to the transmitter powers all units when the receivers are within 150ft (50m) of the transmitter. Twisted Pair Connectors — RJ–45 connectors. Control — RGB Level (Gain), ID bit. System Range (Twisted Pair) — Up to 100m (300ft). Cable (Twisted Pair) — UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5. Standard 19” Rack Mount Size — 1U. Rack "ears" included.
