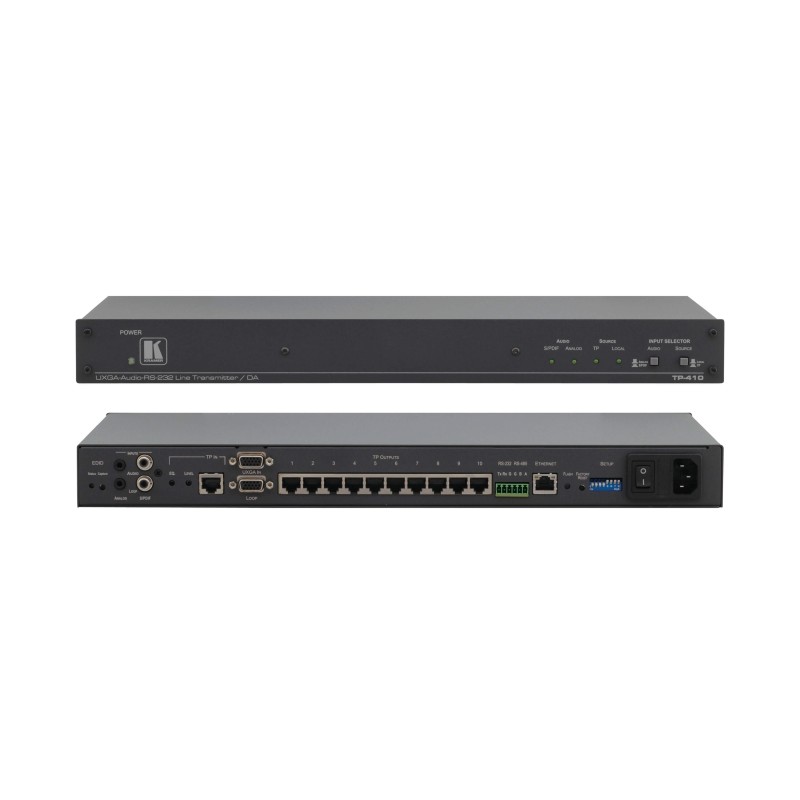

The TP−410 is a high−performance distribution amplifier for computer graphics up to WUXGA or twisted pair video, unbalanced stereo or S/PDIF audio, and bi−directional RS−232 signals. The RS−232 and selected audio/video inputs, distributed to ten twisted pair outputs.
Resolution — Up to and including WUXGA (1920x1080).
Selectable Inputs — Local or twisted pair (WUXGA, audio and RS–232).
Data Handling — Extensive bidirectional RS–232 embedding, de–embedding and other options.
Selectable Analog or Digital Audio Input.
EDID Capture — Copies and stores the EDID from a display device.
Transmission Range — Up to 300ft (100m) over STP cabling.
Flexible Control Options — Front panel, RS–232, RS–485, Ethernet.
Controls — Source selection buttons, power and source indicator LEDs, TP LEVEL and EQ trimmers.
Worldwide Power Supply — 100–240V AC.
Standard 19” Rack Mount Size — 1U. Rack "ears" included.
TP-410
