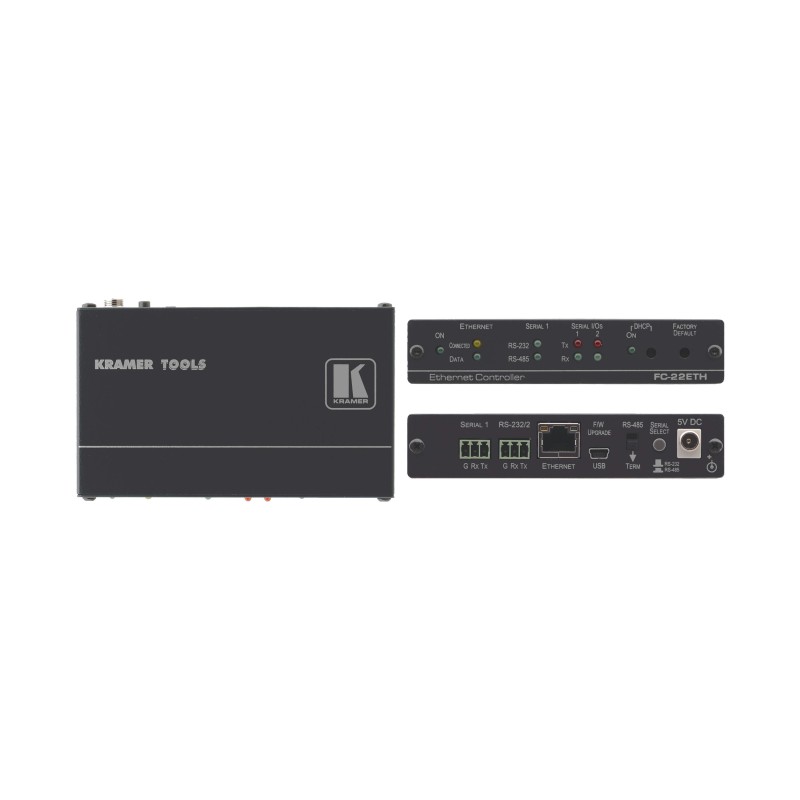

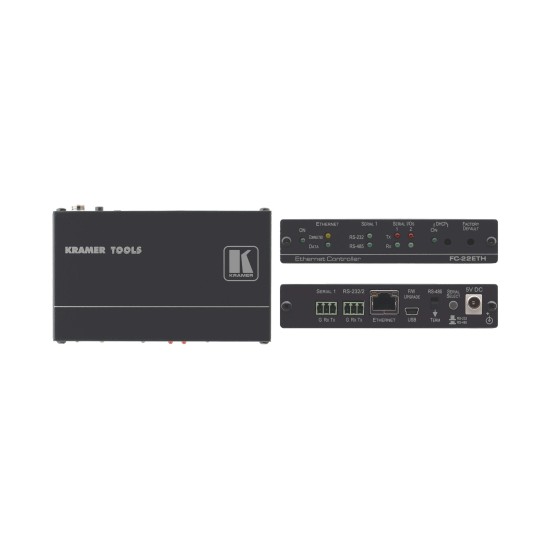

The FC−22ETH is an Ethernet control gateway, capable of plug and play deployment over customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232 or RS−485 serial control connections. Multiple control clients can be IP−connected to the FC−22ETH control gateway for concurrent control of two RS−232 or RS−485 controllable devices, such as AV scalers, video displays, and audio amplifiers.
1 RS–485 or RS–232 Selectable Bidirectional Control Port — Controls a device via bi–directional serial control protocols.
1 RS–232 Bidirectional Control Port — Controls a device via bidirectional RS–232 serial control protocols.
1 Ethernet Control Port — Remote protocol–based control port.
Built–in Web Pages — Remote browser–based control and support.
Simultaneous IP Control Communication — With up to 40 IP control clients.
Mini USB Port — For firmware upgrades and local technical services.
Easy Installation — Plug & play IP auto–setup deployment for simple and cost–reducing installation.
FC-22ETH
