The RoboSHOT 30 QDVI System has been discontinued. The recommended replacement is the RoboSHOT 30E QDVI System. Please contact technical support if you have additional questions.

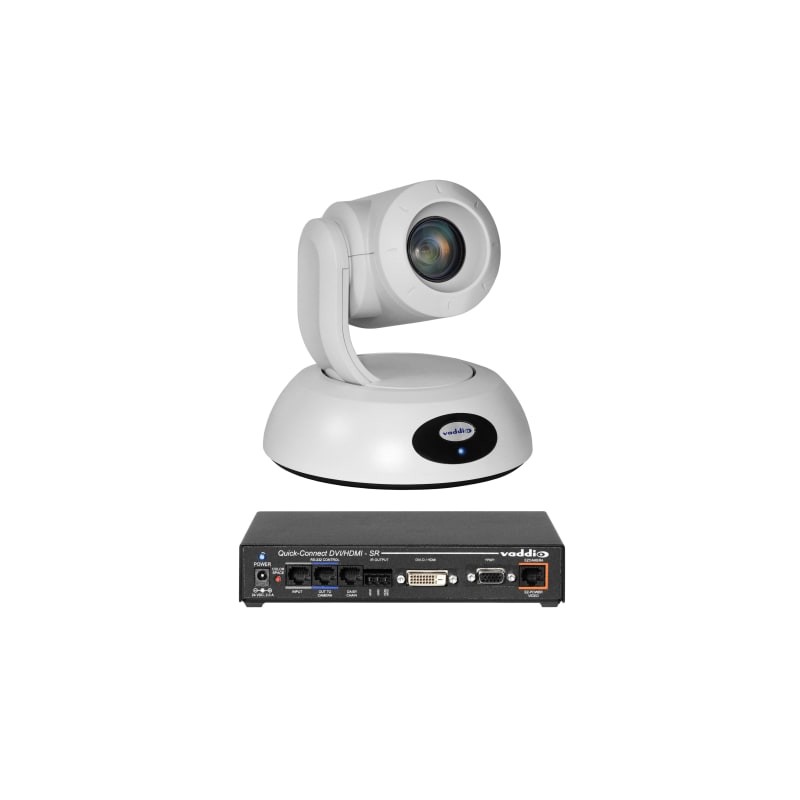

RoboSHOT 30 QDVI System delivers high-quality HD video, power and control over two Cat. 5 cables up to 100'. Outputs include simultaneous HDMI, YPbPr and HSDS and support both drop framed and non-drop framed HD video resolutions.
Key Features:
HDMI-DVI-D and HD-YPbPr Outputs
Power/Video/Control on two Cat-5’s up to 100’ (30.5m)
THIS PRODUCT HAS BEEN DISCONTINUED - Recommended replacement is RoboSHOT 30E QDVI System
The RoboSHOT 30 HD PTZ Camera is a professional quality PTZ camera with high quality imaging, fine detail and exceptional color reproduction. This camera offers integrators, dealers and end users with an incredible improvement over other conferencing cameras available today.
The RoboSHOT 30 is perfect for medium to large rooms and provides exceptional support for applications including, House of Worship services, large auditorium A/V systems, large distance learning classrooms, live event theatres, IMAG for performances, large lecture theatres with lecture capture and more!
One of the key features of the RoboSHOT cameras is Tri-Synchronous Motion. Tri-Synchronous Motion is a camera control protocol that allows all three (pan, tilt and zoom) axes to move simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so pan, tilt and zoom arrive at the preset shot simultaneously, which allows for smooth and useable on-air camera movements.
The Quick-Connect™ DVI/HDMI delivers simultaneous analog YPbPr HD video and digital video (DVI-D or HDMI) outputs on separate connectors. This system is ideal for video conferencing, multiple monitoring and large screen projection applications.
This Package Includes:
RoboSHOT 30 camera (black or white)
Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
Vaddio IR Remote Commander
Quick-Connect DVI/HDMI SR Interface (QDVI)
24V power supply with AC cord set(s)
Quick-start cards
4 qty rubber feet for bottom of QDVI unit if not rack-mounted
1 qty 3-position phoenix-style connector
EZCamera RS-232 Control Adapter
