TBUS-4xl

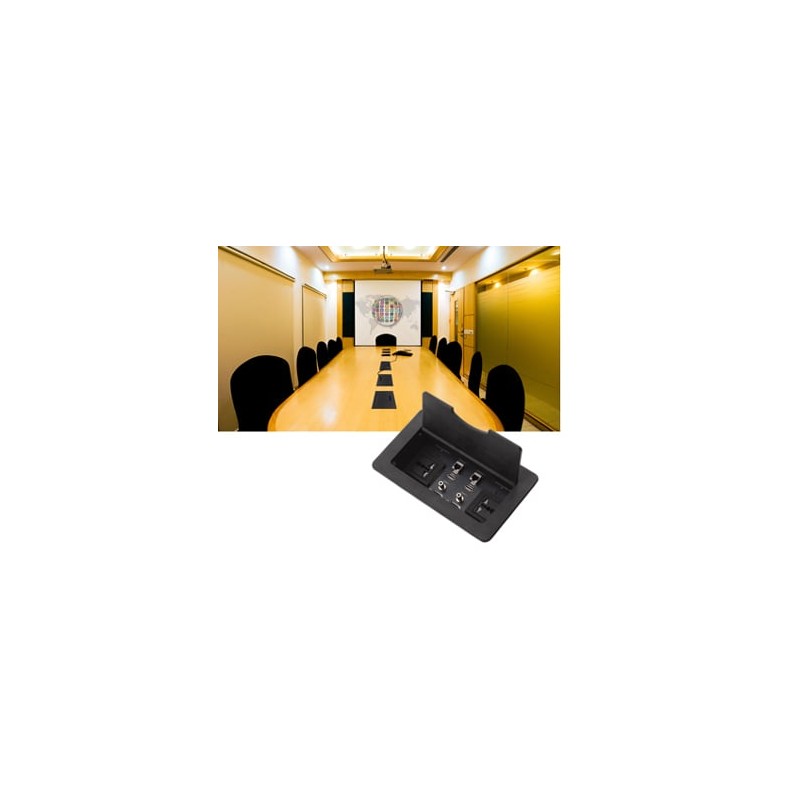

The TBUS−4xl is the enclosure of a new modular system with a tilt−up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord. NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately. Inner Frame — 2 different "T4F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass–through or connector inserts, 1 long insert and up to 3 Kramer TOOLS. Power Sockets — 8 different "TS" single socket options are available to accommodate the power requirements worldwide. Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket. Optional Accessories — TBUS Brackets, K–Able Box Cable Reels, Step–In Modules and Controllers are available. Cover — Manually opens & closes. Connector Depth — Adjustable. Installation Requirement — Table cutout of 225mm x 123mm (8.87" x 4.85"). Dimensions — Top plate: 24.3cm x 14.0cm (9.6" x 5.5") W, D; Enclosure: 20.3cm x 10.2cm x 13.0cm (8.0" x 4.0" x 5.1") W, D, H. Weight — TBUS–4xl: 1.35kg (2.8lbs) approx.; table clamps: 0.25kg (0.6lbs).
