FC-18

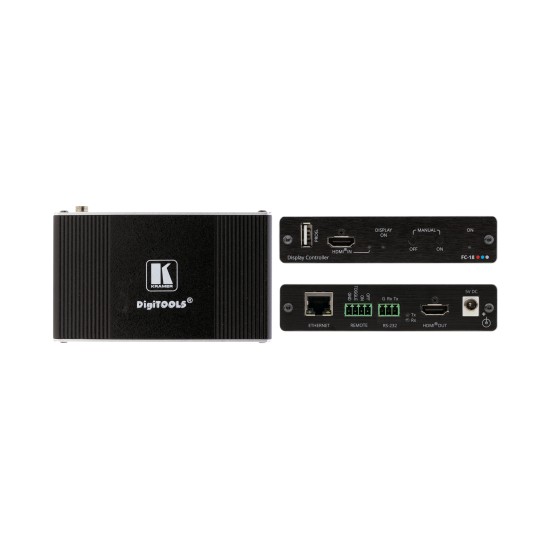

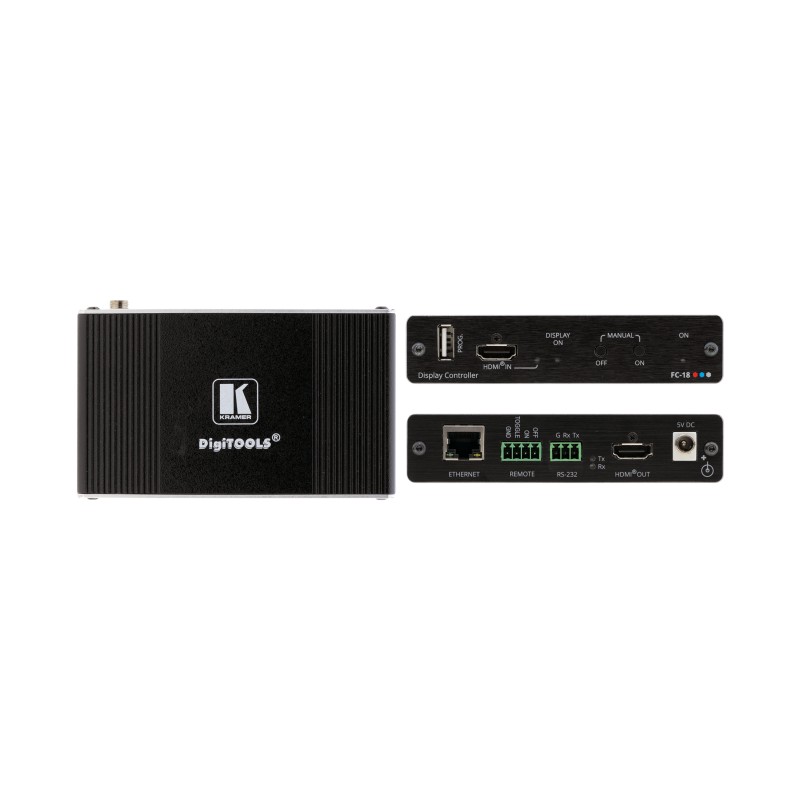

FC−18 is a display ON/OFF controller for 4K@60Hz (4:4:4) HDR HDMI signals. It accepts and outputs an HDMI signal after reclocking and equalizing. On detection of the onset of an input signal FC−18 sends an ON command to the display or projector and on detection of the loss of the input signal FC−18 sends an OFF command. FC−18 can also be used to control a display device manually via front panel buttons, Ethernet or contact closure switches. Save on Power Costs — Shut down display devices automatically when not in use. Facilitate Meeting Setups — Just plug in the AV source and the display screen or projector automatically turn on. No more searching for the power button. High–Performance HDMI Acceptor — Supports 4K@60Hz (4:4:4) HDR10, HDCP 2.2/1.4 signals at 18G (6G per channel) data rate, CEC (by–pass), Dolby Vision (by–pass) as specified in HDMI 2.0. Variety of Automatic Control Formats — Commands are sent to the display device via CEC, RS–232, or Ethernet. Variety of Manual Control Formats — Manually turn the display device ON and OFF via front panel button and RS–232/CEC commands, Ethernet, contact closure switches. Data Tunneling — Supports data tunneling between the RS–232 port and the Ethernet ports. HDCP Compliance — HDCP 1.4 and 2.2. Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances. Selectable EDID Options — Default (internal), external (sink) or user–defined. Firmware Upgrading via USB port. Easy Installation — Compact DigiTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
