8×2 Multi-Format Matrix Switcher with Dual, Mirrored HDMI / HDBaseT Outputs

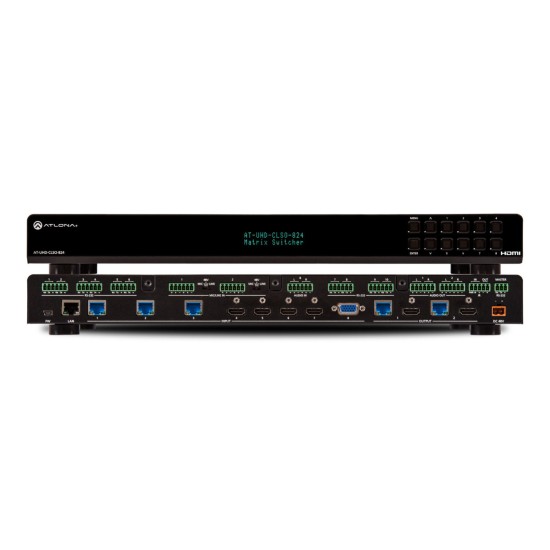

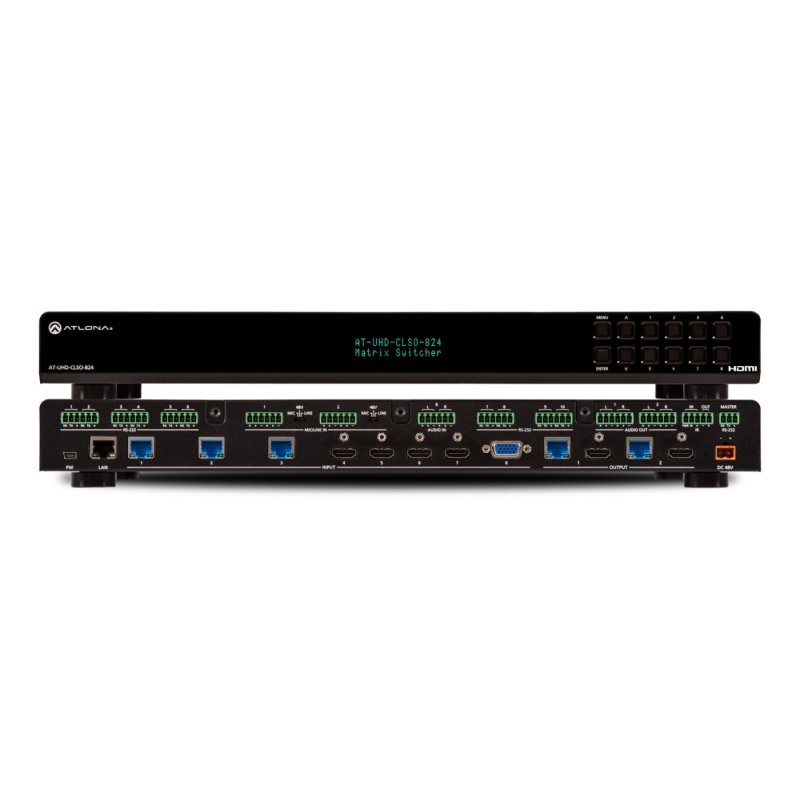

The Atlona AT-UHD-CLSO-824 is a 4K/UHD 8×2 matrix switcher with dual, HDBaseT and mirrored HDMI outputs for 4K/UHD @ 60Hz signals. This matrix switcher has multi-format signal-handling, Ethernet-enabled 100-meter HDBaseT input/output extension, and advanced audio capabilities. The CLSO-824 brings advanced multi-format matrix switching to the CLSO series of classroom and small office switchers. The mix of inputs supports remote sources at lecterns and conference room tables via HDBaseT transmission as well as local sources in the equipment rack. The matrix serves a wide array of room configurations with two HDBaseT video outputs, each featuring a mirrored HDMI port to provide an additional output for a local display or an Atlona Extender Kit. The CLSO-824 offers three Ethernet-enabled HDBaseT inputs designed to provide system design flexibility. Two HDBaseT outputs on the switcher provide extended distance AV signal extension up to 330 feet (100 meters). These outputs are Ethernet-enabled to also provide extension of control signals to displays. All HDBaseT inputs and outputs feature industry standard Power over Ethernet to remotely power extender endpoints. Sophisticated matrixing capabilities within the switcher include a dedicated audio mix-matrix for signals routed to the switcher’s outputs. This gives integrators the ability to mix audio signals from either of the two selected video sources along with both mic/line input signals. Audio is de-embedded from the video signal for processing and mixing with the mic/line sources. The resulting audio mix is sent to the balanced line level analog outputs and re-embedded to the digital video outputs. Velocity Device Manager is a powerful network software platform ideal for configuring, managing, and monitoring the CLSO-824 and other Atlona IP-controllable devices over a LAN, WAN, or VPN. Velocity Device Manager is available as part of Velocity control systems or as a free virtual machine software download, and greatly streamlines installation and maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser. The AT-UHD-CLSO-824 is part of the Atlona CLSO Series of multi-format switchers and matrix switchers for presentation AV systems. The CLSO Series features built-in HDBaseT extension, plus powerful control and audio system integration features. See below for more information. 4 HDMI 2 multi-function VGA Mirrored HDBaseT (100 m) and HDMI Integrated 4K scaling Mic input with ducking Embedding and de-embedding Breakaway audio switching TCP/IP, RS-232, and IR control Control insertion over HDBaseT RS-232 routing to local and remote devices Automatic display control Automatic input switching 3 HDBaseT (100 m) 4 HDMI 1 multi-function VGA Mic input with ducking Embedding and de-embedding Audio output matrix mixer TCP/IP, RS-232, and IR control Control insertion over HDBaseT RS-232 routing to local and remote devices The AT-UHD-CLSO-824 features HDBaseT inputs and outputs, and is compatible with Atlona UHD-EX and HDVS-200 Series transmitters and receivers. 8×2 matrix switcher with HDBaseT and HDMI ports for each output Three HDBaseT inputs Four HDMI inputs One multi-function analog input on 15-pin HD connector Two Ethernet enabled, HDBaseT outputs Audio output matrix mixer Two, balanced, stereo audio outputs on 6-pin captive screw connectors Mirrored outputs on HDBaseT and HDMI 4K/UHD @ 60 Hz capability Power over Ethernet for remote-powered HDBaseT transmitters and receivers TCP/IP, RS-232, and IR, control EDID management HDCP Management Two, balanced line/mic input with 48V phantom power Microphone ducking with advanced controls Audio de-embedding Adjustable Volume and EQ Front panel volume and mute controls Easy, GUI-based configuration using integrated web server IP to RS-232 translation Ten RS-232 ports Ethernet, RS-232 and IR HDBaseT insertion Multi-channel audio compliant Rack mountable 1U, full-rack width enclosure Included accessories Product Warranty
