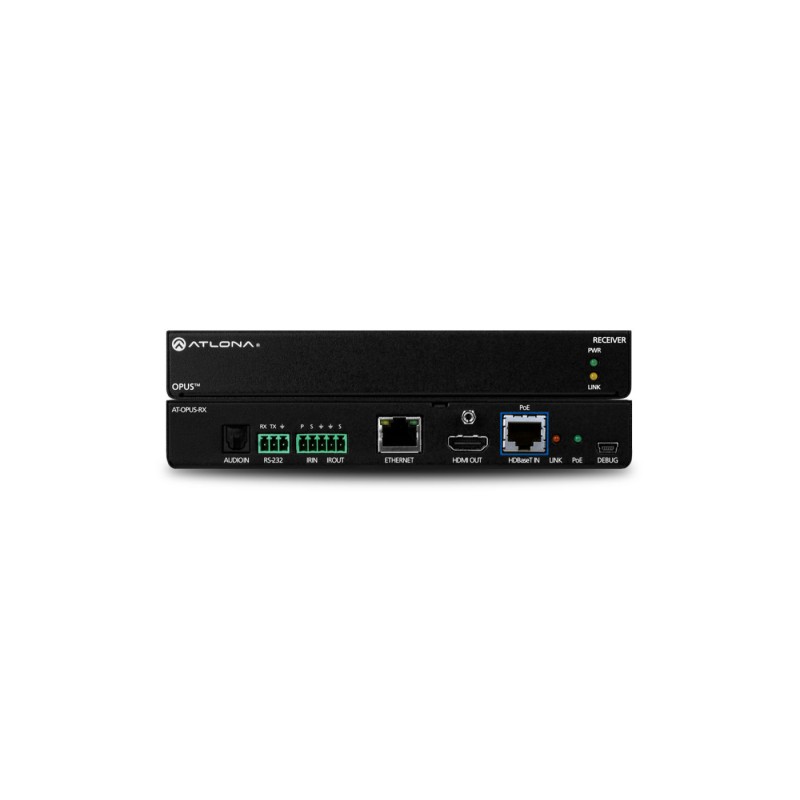

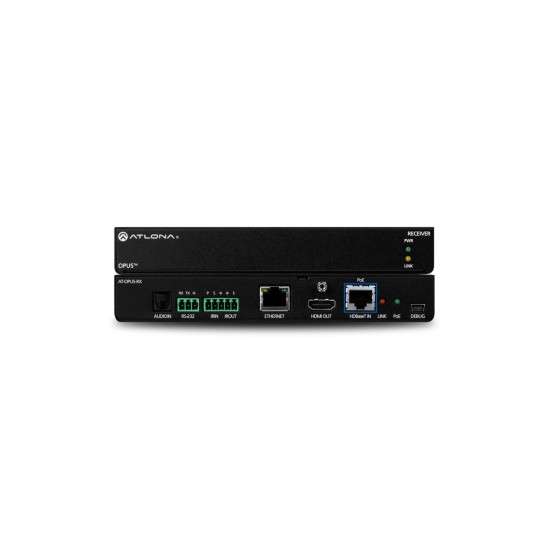

4K HDR HDBaseT RX for Opus Matrix Switchers

The Atlona AT-OPUS-RX is an HDBaseT receiver for high dynamic range (HDR) formats, designed for use with the Opus Series of HDMI to HDBaseT matrix switchers. Part of the comprehensive family of Atlona 4K HDR integration products, the OPUS-RX is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. It receives HDMI, Ethernet pass-through, and bidirectional IR and RS-232 control signals up to 330 feet (100 meters) over CAT6a/7 cable. Visually lossless VESA Display Stream Compression (DSC) enables HDR and 4K/60 4:4:4 video signal extension over HDBaseT with no latency. For additional integration convenience, the receiver is remotely powered by an Opus Series matrix switcher through Power over Ethernet (PoE). The OPUS-RX can transmit digital audio from a television back to an AV receiver through a dedicated HDBaseT audio return path to the matrix switcher. The OPUS-RX is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays. The OPUS-RX, as with the Opus Series matrix switchers, includes Atlona’s customer support services, so that integrators can specify, purchase, and install with confidence. To view the product warranty, use the following link: https://atlona.com/warranty/. The AT-OPUS-RX is part of the Atlona Opus Series of 4K HDR HDMI to HDBaseT matrix switchers, ideal for residential as well as commercial applications. The Opus Series offers performance, reliability, and powerful control and audio system integration features. See below for more information. NOTE: The AT-OPUS-RX can also be used for point-to-point HDBaseT extension, but is not compatible with transmitters for the AT-HDR-EX-70-2PS, AT-HDR-EX-70C-KIT, or AT-HDR-EX-100CEA-KIT for HDR and 4K/60 4:4:4 content (HDMI data rates exceeding 10 Gbps). 2 unbalanced analog stereo inputs 2 TOSLINK digital inputs 6 parallel analog stereo and TOSLINK outputs Independent routing for de-embedded HDMI input audio, digital and analog audio sources, and return audio over HDBaseT Volume, mute, and EQ for each output TCP/IP, RS-232, and IR control Control insertion over HDBaseT RS-232 routing to remote displays Comprehensive IR control management for sources and displays 2 unbalanced analog stereo inputs 3 TOSLINK digital inputs 8 parallel analog stereo and TOSLINK outputs Independent routing for de-embedded HDMI input audio, digital and analog audio sources, and return audio over HDBaseT Volume, mute, and EQ for each output TCP/IP, RS-232, and IR control Control insertion over HDBaseT RS-232 routing to remote displays Comprehensive IR control management for sources and displays 2 unbalanced analog stereo inputs 4 TOSLINK digital inputs 10 parallel analog stereo and TOSLINK outputs Independent routing for de-embedded HDMI input audio, digital and analog audio sources, and return audio over HDBaseT Volume, mute, and EQ for each output TCP/IP, RS-232, and IR control Control insertion over HDBaseT RS-232 routing to remote displays Comprehensive IR control management for sources and displays Receives bidirectional RS-232 and IR control Supports local IR control of sources at Opus matrix switcher Receives bidirectional RS-232 and IR control Supports local IR control of sources at Opus matrix switcher * To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended. 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats HDCP 2.2 compliant HDBaseT receiver for HDMI, Ethernet, power, and control up to 330 feet (100 meters) Remotely powered by Opus matrix switcher via PoE (Power over Ethernet) Extends RS-232, IR, and Ethernet control signals over HDBaseT Delivers return audio from a TV via dedicated HDBaseT audio return path Visually lossless VESA Display Stream Compression Multi-channel audio compliant Integrated HDBaseT link status monitoring Rear panel I/O connectors Field-updatable firmware Front panel Power and Link status LEDs Low-profile, 1 inch (25 mm) high quarter rack-width enclosure Included accessories Product Warranty
