Two-Input Wallplate HDBaseT Transmitter for HDMI

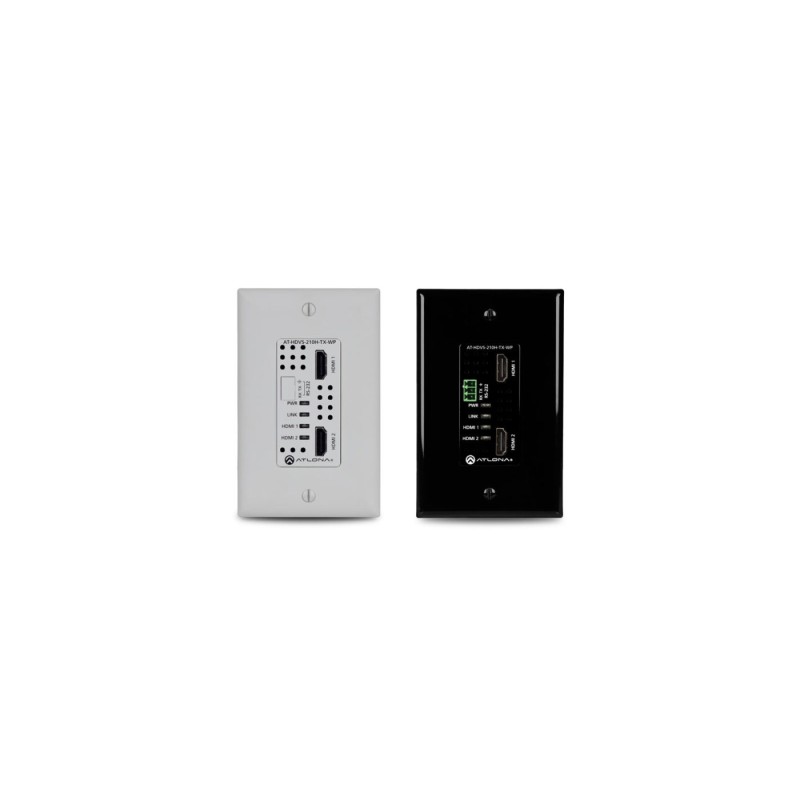

The Atlona AT-HDVS-210H-TX-WP is a 2×1 switcher and HDBaseT transmitter with two HDMI inputs. It features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio and control can be transmitted up to 330 feet (100 meters). The HDVS-210H-TX-WP is HDCP 2.2 compliant. It is ideal for Omega Series receivers such as the AT-OME-RX11, and Atlona switchers and matrix switchers with HDBaseT inputs. The HDVS-210H-TX-WP is also available in a kit with a receiver. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by the receiver or switcher over HDBaseT. The HDVS-210H-TX-WP combines the benefits of auto-switching, integrated display control, and HDBaseT signal transmission. It also enables input selection, volume, and display on/off control from external RS-232 or TCP/IP commands. The HDVS-210H-TX-WP incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces. The HDVS-210H-TX-WP provides control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-210H-TX-WP can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-210H-TX-WP forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-210H-TX-WP display control capability can also be triggered by an external control system. * Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can confirm proper operation with many current Samsung, Panasonic, Sony, and LG TVs. Many manufacturers do not support the CEC “off” command when sent from a source and older TVs use proprietary commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays. The HDVS-210H-TX-WP automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video. Velocity Device Manager is a powerful network software platform ideal for configuring, managing, and monitoring the HDVS-210H-TX-WP and other Atlona IP-controllable devices over a LAN, WAN, or VPN. Velocity Device Manager is available as part of Velocity control systems or as a free virtual machine software download, and greatly streamlines installation and maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser.. The AT-HDVS-210H-TX-WP is part of the Atlona HDVS Series of HDBaseT extenders with AV switching and scaling, plus automatic display control and automatic input selection. See below for a complete listing of transmitters and receivers. 2 HDMI 1 VGA AV Control (internal) 2 HDMI 1 VGA AV Control (internal) AV switcher + transmitter US two-gang wall plate 1 HDMI 1 VGA AV Control (internal) AV switcher + transmitter UK two-gang wall plate 1 HDMI 1 VGA AV Control (internal) AV Control (internal) Transmitter + receiver kit AT-HDVS-150-TX AT-HDVS-150-RX 2 HDMI 1 VGA AV Control (internal) Transmitter + receiver kit AT-HDVS-150-TX-WP AT-HDVS-150-RX 1 HDMI 1 VGA AV Control (internal) 2 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet 2 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet AV switcher + transmitter US two-gang wall plate 1 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet AV switcher + transmitter US two-gang wall plate (black) 1 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet AV switcher + transmitter US one-gang wall plate 2 HDMI 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet (via compatible RX) AV switcher / transmitter + receiver kit US one-gang wall plate 2 HDMI AV RS-232 Ethernet (via RX) * To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended. ** Not a member of the HDVS Series, but includes many of the same convenient features without HDBaseT extension. The AT-HDVS-210H-TX-WP is is ideal for Omega Series receivers such as the AT-OME-RX11, and Atlona switchers and matrix switchers with HDBaseT inputs. The HDVS-210H-TX-WP is also available in a kit with a receiver. See below for a complete listing of compatible products. US one-gang enclosure for wallplate openings – interchangeable black or white trim kits 2×1 HDBaseT switcher with HDMI inputs HDBaseT transmitter for AV, power, and control up to 330 feet (100 meters) 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling HDCP 2.2 compliant Remotely powered via PoE (Power over Ethernet) Automatic display control Automatic input selection using hot plug detect and video detection technology Multi-channel audio compliant EDID management HDCP management Integrated HDBaseT link status monitoring Intuitive GUI-based configuration using integrated web server TCP/IP and RS-232 control Easy to configure and manage with Velocity Device Manager Field-updatable firmware Front panel power and signal status LEDs Included accessories Product Warranty
