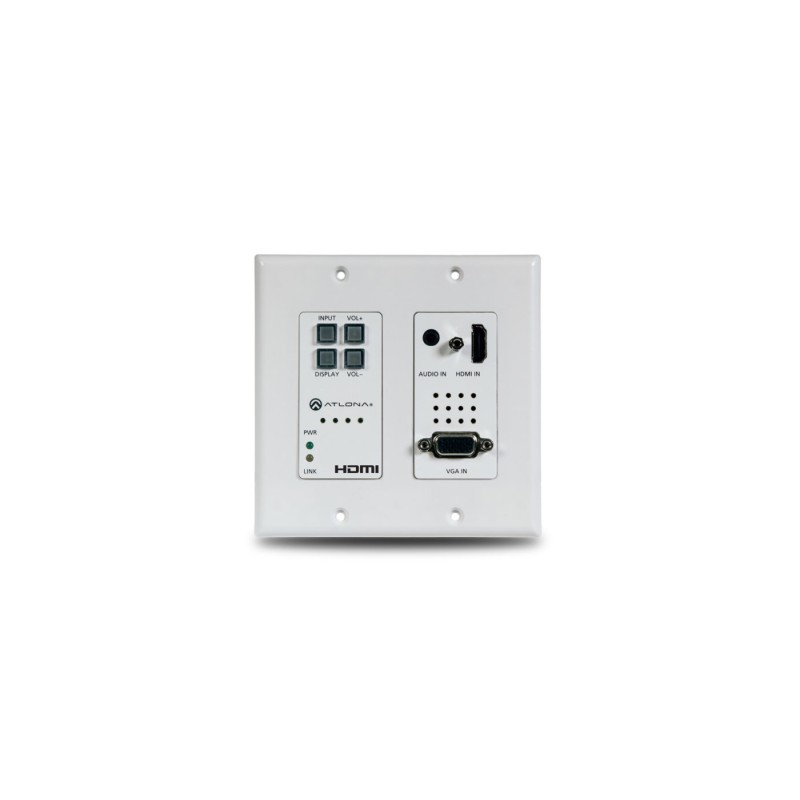

Wallplate HDBaseT Transmitter for HDMI and VGA

The Atlona AT-HDVS-200-TX-WP is a 2×1 switcher and HDBaseT transmitter with an HDMI input plus a VGA input with audio. The HDVS-200-TX-WP features a US two-gang, wallplate form factor. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio, control, and Ethernet can be transmitted up to 330 feet (100 meters). The two-channel audio input can be assigned to either video input and embedded for HDBaseT transmission. The HDVS-200-TX-WP is designed for use with the AT-OME-RX11 4K receiver, but can also be used with Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by the OME-RX11 or other Atlona devices over HDBaseT. The HDVS-200-TX-WP combines the benefits of auto-switching and integrated display control, and the advantages of HDBaseT signal transmission. It enables input selection, volume, and display on/off control from the front panel or external RS-232 or TCP/IP commands. The HDVS-200-TX-WP incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces. The HDVS-200-TX-WP provides control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-200-TX-WP can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-200-TX-WP forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-200-TX-WP display control capability can also be triggered by an external control system. A power button on the front panel can be used for manual on/off control of either the HDVS-200-TX-WP or the display. Front panel volume controls are also available to control the display’s internal audio, or another device with volume control, such as a DSP or another switcher. * Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can confirm proper operation with many current Samsung, Panasonic, Sony, and LG TVs. Many manufacturers do not support the CEC “off” command when sent from a source and older TVs use proprietary commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays. The HDVS-200-TX-WP automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video. Velocity Device Manager is a powerful network software platform ideal for configuring, managing, and monitoring the HDVS-200-TX-WP and other Atlona IP-controllable devices over a LAN, WAN, or VPN. Velocity Device Manager is available as part of Velocity control systems or as a free virtual machine software download, and greatly streamlines installation and maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser. The AT-HDVS-200-TX-WP is part of the Atlona HDVS Series of HDBaseT extenders with AV switching and scaling, plus automatic display control and automatic input selection. See below for a complete listing of transmitters and receivers. 2 HDMI 1 VGA AV Control (internal) 2 HDMI 1 VGA AV Control (internal) AV switcher + transmitter US two-gang wall plate 1 HDMI 1 VGA AV Control (internal) AV switcher + transmitter UK two-gang wall plate 1 HDMI 1 VGA AV Control (internal) AV Control (internal) Transmitter + receiver kit AT-HDVS-150-TX AT-HDVS-150-RX 2 HDMI 1 VGA AV Control (internal) Transmitter + receiver kit AT-HDVS-150-TX-WP AT-HDVS-150-RX 1 HDMI 1 VGA AV Control (internal) 2 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet 2 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet AV switcher + transmitter US two-gang wall plate 1 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet AV switcher + transmitter US two-gang wall plate (black) 1 HDMI 1 VGA 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet AV switcher + transmitter US one-gang wall plate 2 HDMI 4K/60 4:2:0 With AT-OME-RX11 or Atlona switcher AV RS-232 Ethernet (via compatible RX) AV switcher / transmitter + receiver kit US one-gang wall plate 2 HDMI AV RS-232 Ethernet (via RX) * To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended.** Not a member of the HDVS Series, but includes many of the same convenient features without HDBaseT extension. The AT-HDVS-200-TX-WP is compatible with the AT-OME-RX11 receiver, and can also provide remote 4K/UHD input switching for Atlona HDBaseT-equipped switchers and matrix switchers. See below for a complete listing of compatible products. US two-gang enclosure for wallplate openings 2×1 HDBaseT switcher Remotely powered over HDBaseT Automatic display control Automatic input selection using hot plug detect and video detection technology TCP/IP and RS-232 control of switcher 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling HDCP 2.2 & 1.4 compliant Extended distance HDBaseT extension EDID management HDCP management Front panel input select button Front panel display on/off control Front panel volume control Integrated HDBaseT link status monitoring Configured and managed by Velocity Device Manager Field-updatable firmware Front panel power and input selection status LEDs Included accessories Product warranty
